1.85mm Male PCB Mount RF Connector - End Launch, Solderless, 50 Ohm, 67GHz

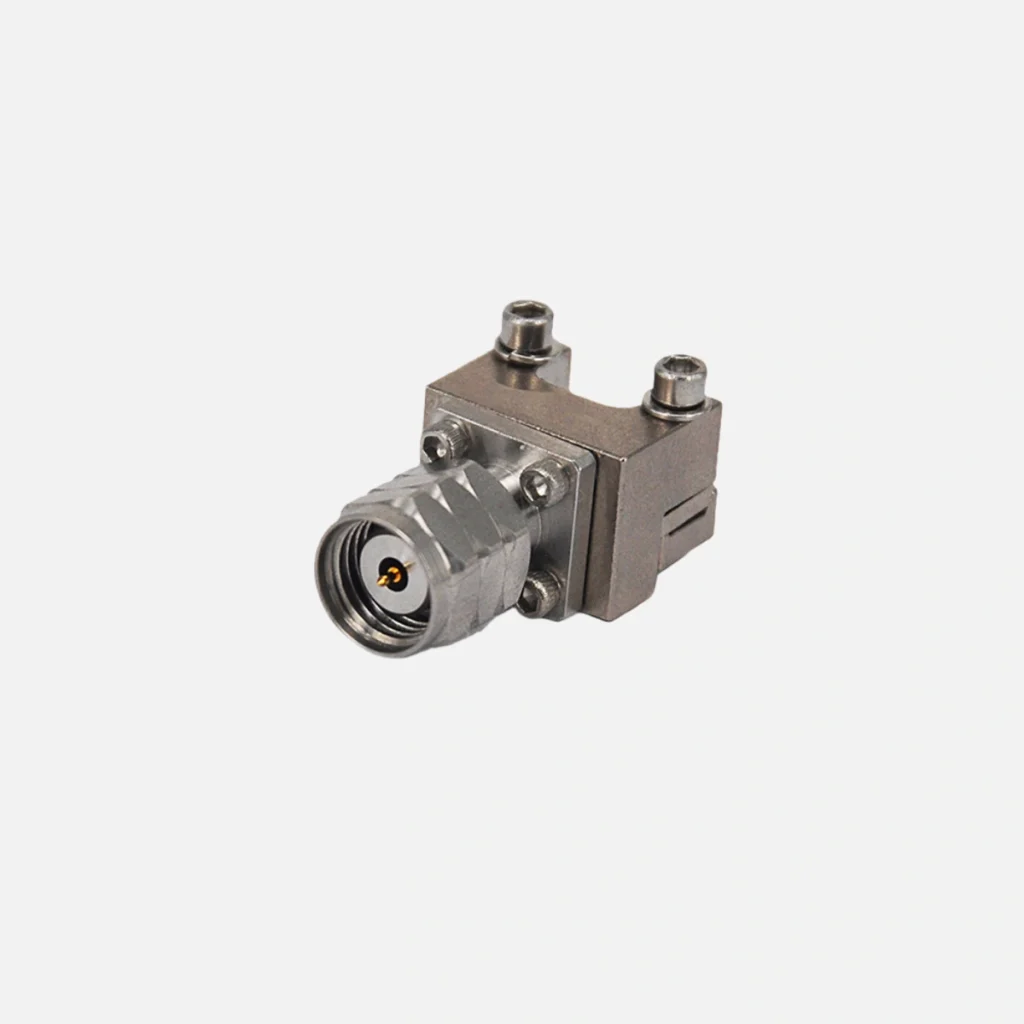

1.85mm Male PCB Mount RF Connector: Removable End Launch, Solderless Compression Design

Connector Series: 1.85mm
Connector Gender: Male
Connector Mount Method: 2 Hole Flange
Interface Type: Solderless Horizontal Launch
Center Contact Material: CuBe Gold Plated
Body Material: Stainless Steel
Impedance: 50 ohm
Frequency Range: DC to 67GHz
VSWR: ≤1.25:1
Voltage Rating: 150 V(rms)
Mating Cycles: ≥500 cycles
Operating Temperature: -40°C to +165°C
Dielectric Material: PEI
MOQ & Customization: 1 Piece (Standard & Custom Designs, Global Orders Accepted)

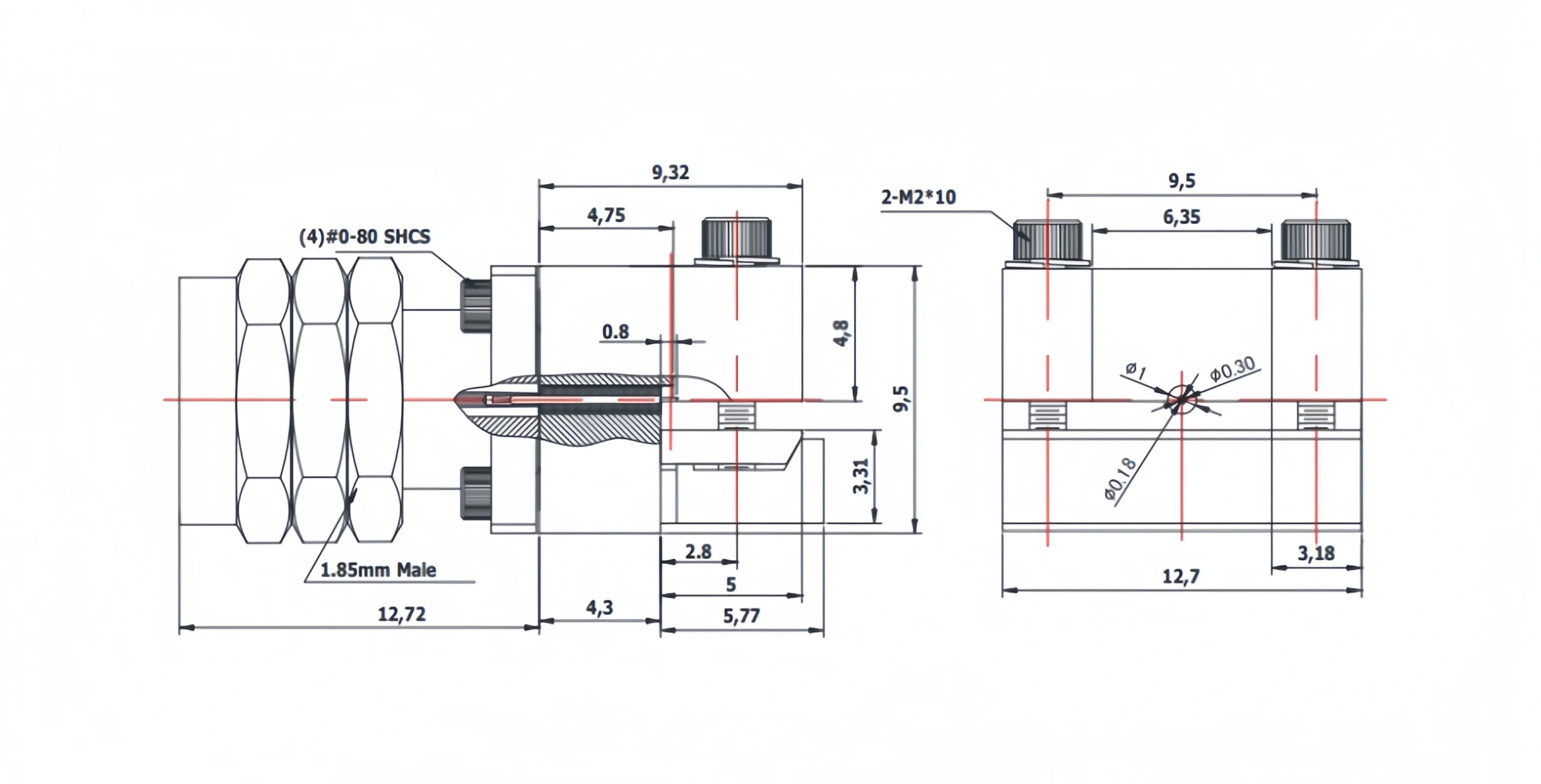

CAD data

PDF Download

Outstanding Performance of 1.85mm Male PCB Mount RF Connector

Exceptional Millimeter-Wave Capability

DC to 67GHz frequency range supports the most demanding millimeter-wave applications
Excellent VSWR ≤1.25:1 across the entire spectrum ensures signal integrity
Low insertion loss (0.05×√f) maintains signal strength in high-frequency systems
50-ohm impedance provides perfect matching for precision RF circuits

Advanced Solderless Compression Design

Solderless horizontal launch eliminates soldering damage risks and simplifies installation
Compression attachment method ensures reliable, gas-tight connections every time
Removable end launch design facilitates easy maintenance and field replacement
2-hole flange mounting provides secure mechanical attachment to PCB substrates

Premium Materials for Maximum Reliability

Gold-plated CuBe center contact delivers superior conductivity and corrosion resistance
Stainless steel body and outer contact ensures mechanical durability and longevity
PEI dielectric material maintains stable electrical properties across temperature extremes
Robust construction withstands harsh environmental conditions

Proven Mechanical and Environmental Durability

≥500 mating cycles rating guarantees long-term reliability in test applications
Wide operating temperature range (-40°C to +165°C) for extreme environments
Full compliance with MIL-STD-202 standards for vibration, shock, and thermal cycling
RoHS compliant construction meets global environmental requirements

Unmatched Ordering Flexibility and Global Support

Minimum order quantity of just 1 piece eliminates barriers for prototyping and R&D
Custom designs also start from 1 piece with comprehensive engineering support
Global orders welcome with competitive pricing and reliable logistics network
Fast turnaround times for both standard and customized connector solutions

Comprehensive Quality Assurance

500V dielectric withstand voltage rating ensures operational safety
≥500 Mohm insulation resistance guarantees reliable long-term performance
Every unit undergoes rigorous quality control and performance verification
Expert technical support available for high-frequency application optimization

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	1.85mm Male PCB Mount RF Connector
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Connector Series	1.85mm
	Connector Gender	Male
	Connector Angle	Straight
	Connector Mount Method	2 Hole Flange
	Attachment Method	Compression
	Interface Type	Solderless Horizontal Launch
Material	Centre Contact	CuBe Gold Plated
	Outer Contact	Stainless Steel
	Body	Stainless Steel
	Dielectric	PEI
Electrical Specifications	Impedance	50 ohm
	Frequency Range(From DC)	67GHz
	VSWR	≤1.25:1 (DC 0~67GHz)
	Insertion Loss	0.05 xSqt.(f_Ghz)
	Voltage Rating	150 V(rms)
	Dielectric Withstanding Voltage	500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	≥500 cycles
Mechanical Characteristics	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-40°C ~ +165°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
