SSMC RF Connector, Thru Hole, 6GHz for 5G & IoT Devices

SSMC RF Connector, Thru Hole PCB Mount, 6GHz for Compact Wireless Applications

Connector Series: SSMC
Connector Gender: Male
Mounting Method: Thru Hole
Impedance: 50 Ohm
Frequency Range: DC to 6 GHz
VSWR: ≤1.25:1 (DC to 6 GHz)
Insertion Loss: 0.05 × √f (GHz) dB
Voltage Rating: 150 V(rms)
Center Contact Material: Brass, Gold Plated
Body Material: Brass, Gold Plated
Insulator Material: PTFE
Mating Cycles: ≥500 cycles
Operating Temperature: -45°C to +125°C
MOQ & Customization: 1 Piece (Standard & Custom Designs, Global Orders Accepted)

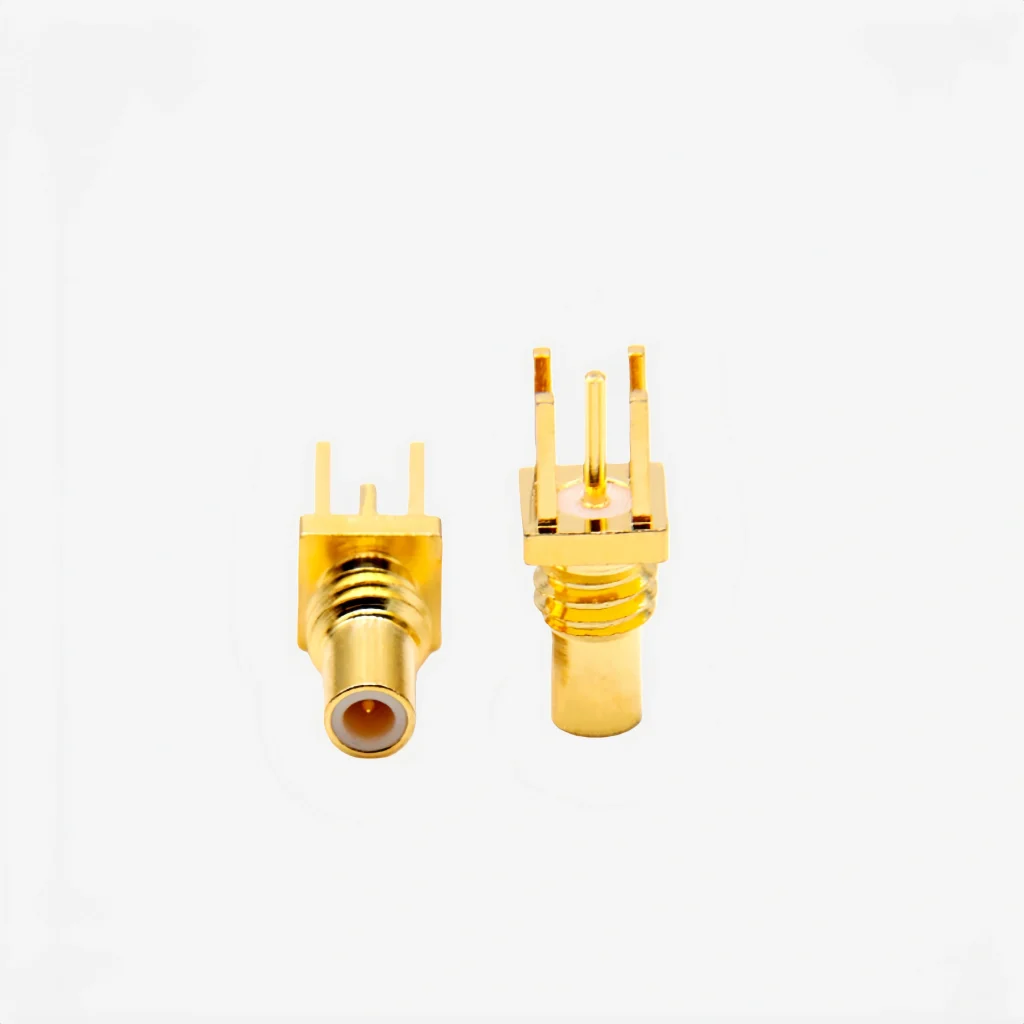

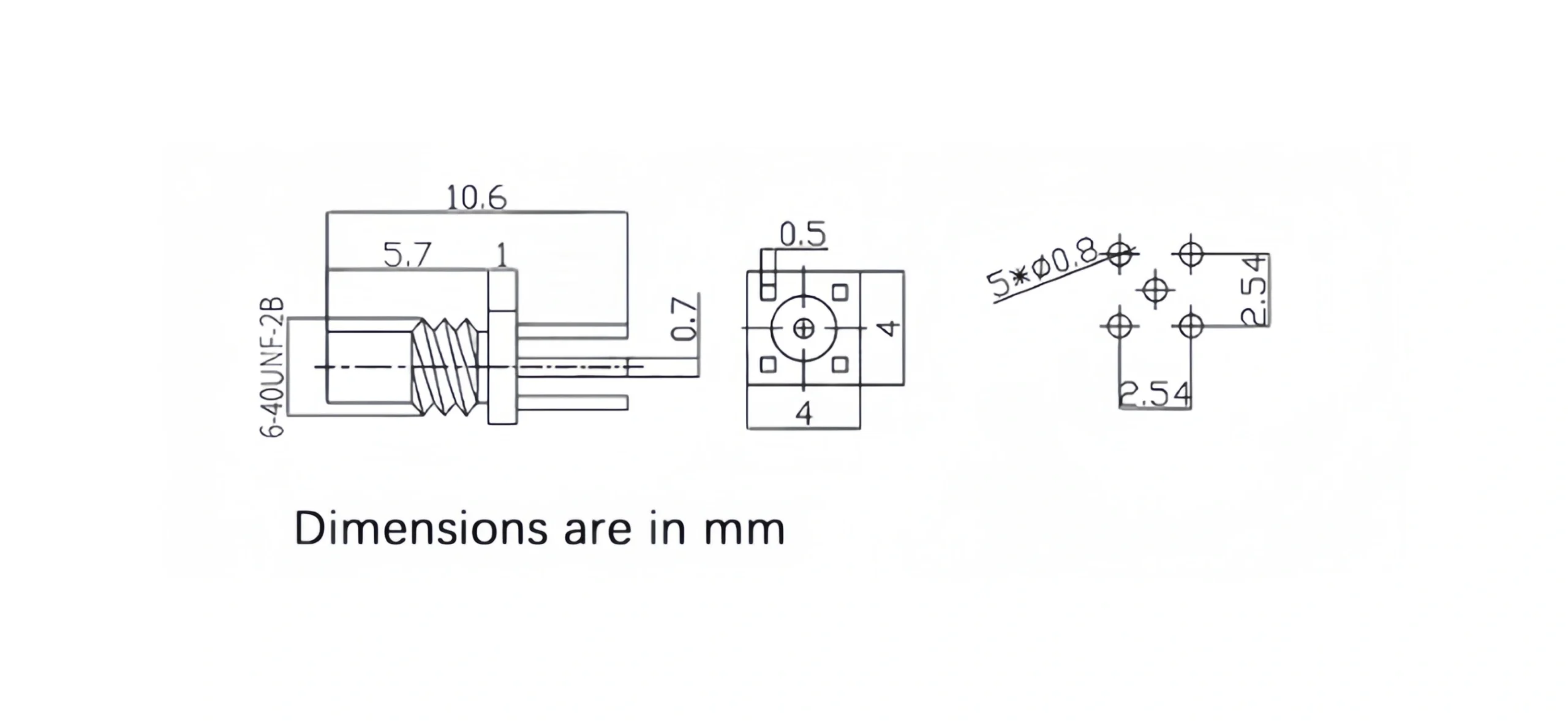

CAD data

PDF Download

Product Advantages: Precision Connectivity for Demanding Applications

Flexible Ordering with No Minimum Quantity

We eliminate barriers to innovation by supporting both standard and custom orders with a minimum order quantity of just 1 piece. Whether you’re prototyping a new design or require specialized components for research and development, we welcome your requirements. Notably, our custom solutions also start at just 1 piece, and we proudly accept orders from customers worldwide, ensuring that even highly specialized projects can proceed without quantity constraints.

Superior RF Performance up to 6 GHz

Our SSMC RF Connectors deliver exceptional electrical characteristics, operating seamlessly from DC to 6 GHz with a low VSWR of ≤1.25:1 across the entire frequency range. The precision gold-plated brass contacts and PTFE insulation ensure minimal insertion loss and stable signal integrity, making these connectors ideal for high-frequency applications in telecommunications, test equipment, and wireless systems.

Robust Construction for Long-Term Reliability

Engineered for durability, these connectors feature a solid brass construction with gold plating, providing excellent corrosion resistance and mechanical strength. They withstand temperature extremes from -45°C to +125°C and are tested to MIL-STD-202 standards for vibration, shock, and thermal shock. With a mating cycle durability of ≥500 cycles, they offer reliable performance in both laboratory and demanding operational environments.

Easy PCB Integration and Technical Support

The thru-hole mounting design with standard 0.100″ x 0.031″ hole pattern ensures straightforward PCB integration and compatibility with automated assembly processes. Our engineering team provides comprehensive technical support throughout your project lifecycle, from initial component selection to integration guidance, ensuring optimal performance in your specific application.

Global Logistics and Responsive Service

With efficient global shipping networks and responsive customer service, we ensure timely delivery to any location. Standard items typically ship within 5 days, while custom solutions are delivered within 2-3 weeks. This logistical capability, combined with our flexible ordering policy, makes us a reliable partner for projects of any scale, anywhere in the world.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SSMC RF Connector
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Connector Series	SSMC
	Connector Gender	Male
	Connector Angle	Straight
	Connector Mount Method	None
	Attachment Method	Solder
	Interface Type	Thru Hole
Material	Centre Contact	Brass, gold plated
	Body	Brass, gold plated
	Insulators	PTFE
Electrical Specifications	Impedance	50 ohm
	Frequency Range (From DC)	6GHz
	VSWR	≤1.25:1 (DC 0~6GHz)
	Insertion Loss	0.05 xSqt.(f_Ghz)
	Voltage Rating	150 V(rms)
	Dielectric Withstanding Voltage	500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	≥500 cycles
Mechanical Characteristics	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
