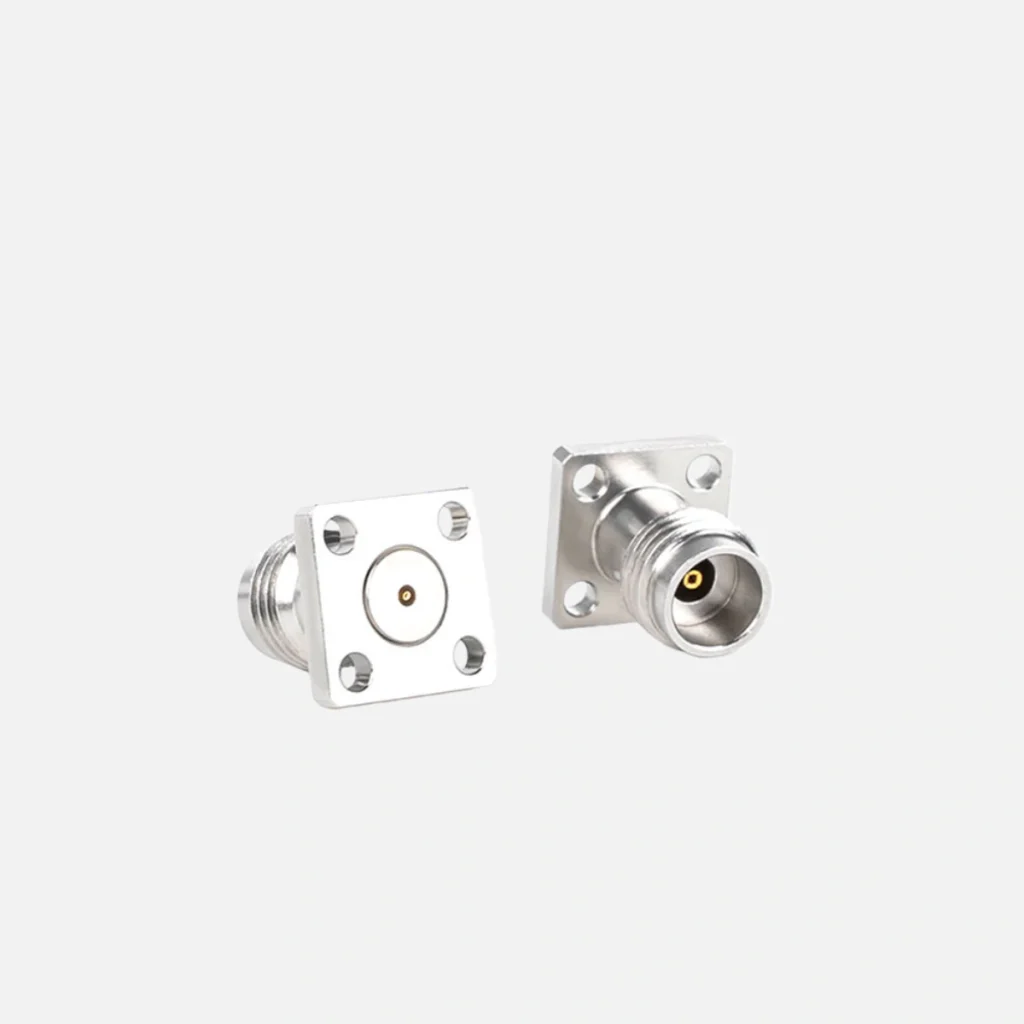

2.4mm Female PCB Mount RF Connector - 4 Hole Flange, Field Replaceable, 50 Ohm

2.4mm Female PCB Mount RF Connector: 4-Hole Flange, Field Replaceable, 0.23mm Pin

Connector Series: 2.4 mm
Connector Gender: Female
Connector Mount Method: 4-Hole Flange
Attachment Method: Field Replaceable
Center Contact Material: Beryllium Copper Gold Plated
Body Material: Stainless Steel
Impedance: 50 ohm
Frequency Range: DC to 50GHz
VSWR: ≤1.15:1
Voltage Rating: 150 V(rms)
Mating Cycles: ≥500 cycles
Operating Temperature: -40°C to +165°C
Insulators: PEI
MOQ & Customization: 1 Piece (Standard & Custom Designs, Global Orders Accepted)

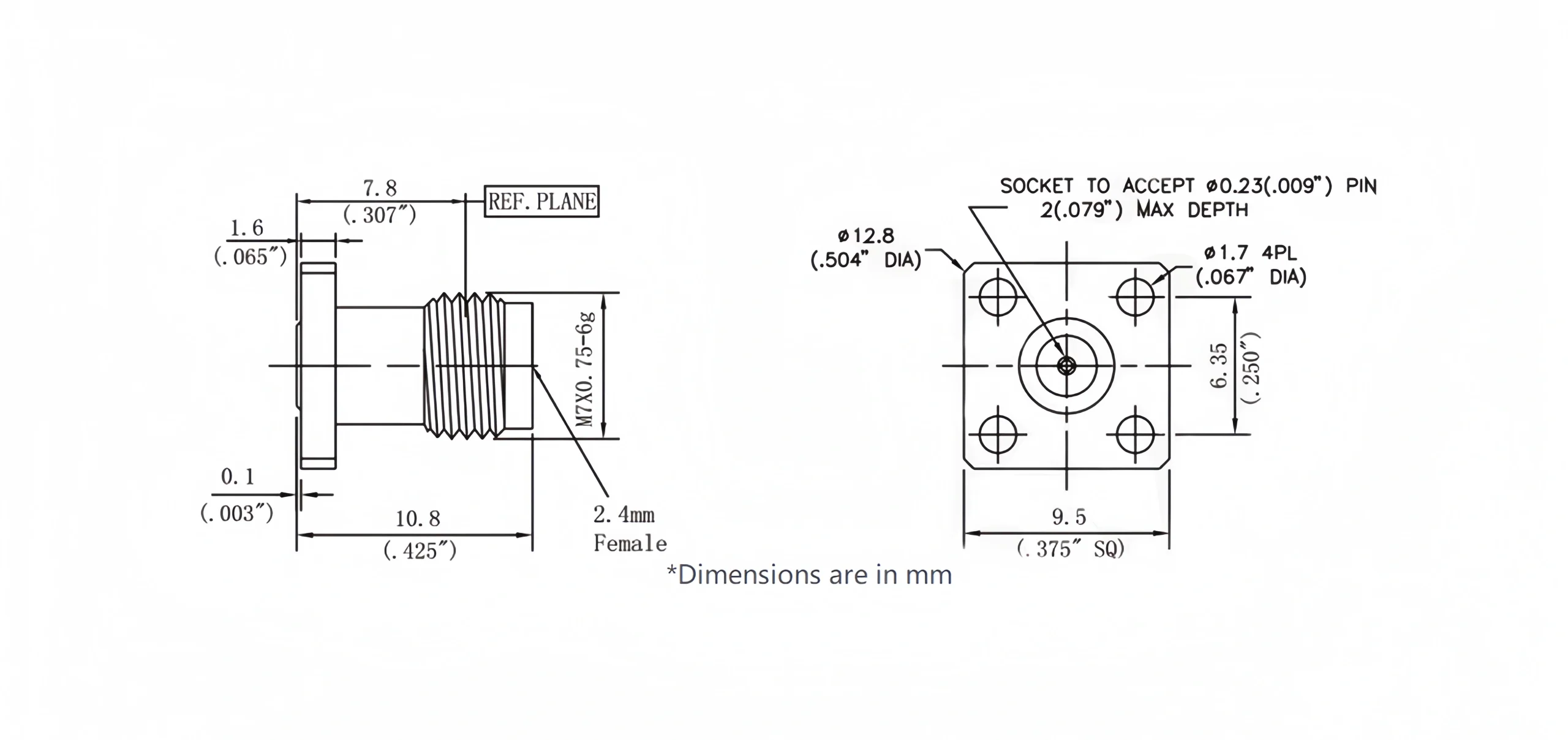

CAD data

PDF Download

Superior Performance of 2.4mm Female PCB Mount RF Connector

50-ohm impedance ensures precise signal transmission from DC to 50GHz
Excellent VSWR ≤1.15:1 maintains signal integrity across the full frequency spectrum
Low insertion loss (0.05×√f) minimizes signal degradation in high-frequency applications
150 V(rms) voltage rating provides reliable operation in demanding RF environments

Premium Materials for Enhanced Reliability

Gold-plated beryllium copper center contact offers optimal conductivity and durability
Stainless steel body provides superior corrosion resistance and mechanical strength
PEI insulators ensure stable performance across temperature variations
Robust construction withstands harsh operating conditions

Advanced Mechanical Design

4-hole flange mounting delivers secure PCB attachment and stability
Field replaceable design enables easy maintenance and quick servicing
≥500 mating cycles rating guarantees long-term reliability
5-7 in-lbs mating torque ensures secure connections in vibrating environments

Stringent Environmental Compliance

Wide operating temperature range (-40°C to +165°C) for extreme conditions
Full compliance with MIL-STD-202 standards for environmental stress testing
RoHS compliant materials meet global environmental requirements
Proven performance in high altitude and humid conditions

Unmatched Ordering Flexibility

Minimum order quantity of just 1 piece – perfect for prototyping and R&D
Custom designs also start from 1 piece with full engineering support
Global orders accepted with competitive pricing and reliable shipping
Fast turnaround for both standard and customized solutions

Comprehensive Quality Assurance

500V dielectric withstand voltage ensures electrical safety
≥500 Mohm insulation resistance guarantees reliable performance
Rigorous quality control and testing procedures
Expert technical support for application-specific requirements

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	2.4mm Female PCB Mount RF Connector
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Connector Series	2.4 mm
	Connector Gender	Female
	Connector Angle	Straight
	Connector Mount Method	4-Hole Flange
	Attachment Method	Field Replaceable
	Interface Type	Pin
Material	Centre Contact	Beryllium Copper/Gold Plated
	Body	Stainless Steel
	Insulators	PEI
Electrical Specifications	Impedance	50 ohm
	Frequency Range(From DC)	50GHz
	VSWR	≤1.15:1 (DC 0~1.15GHz)
	Insertion Loss	0.05 xSqt.(f_Ghz)
	Voltage Rating	150 V(rms)
	Dielectric Withstanding Voltage	500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	≥500 cycles
Mechanical Characteristics	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-40°C ~ +165°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

Q1: What is your minimum order quantity and do you accept custom designs?
A: We offer minimum order quantity of just 1 piece for both standard and custom designs, and we welcome global orders to support projects of any scale.

Q2: What is the mounting style of this 2.4mm connector?
A: It features a secure 4-hole flange PCB mounting with 0.250 inch hole spacing for stable installation.

Q3: Is this connector field replaceable?
A: Yes, the field replaceable design allows for easy maintenance and replacement in operational environments.

Q4: What is the pin diameter specification?
A: It features a precision 0.23mm pin for reliable connections in high-frequency applications.

Q5: What is the impedance rating?
A: Standard 50 ohm impedance ensures optimal signal integrity across the frequency range.

Q6: What materials are used in construction?
A: High-quality materials including gold-plated contacts ensure durability and performance.

Q7: What are the typical applications?
A: Ideal for test equipment, microwave systems, telecommunications, and high-frequency PCB applications.

Q8: What is the frequency range?
A: Designed for high-frequency applications up to 50GHz, suitable for millimeter-wave uses.

Q9: What is the delivery time for standard orders?
A: Standard products ship within 5 working days; custom orders may require additional time.

Q10: Do you provide technical drawings?
A: Yes, complete technical documentation and drawings are available upon request.
