2.92mm Female RF Connector - 2 Hole Flange, DC-40GHz, 50 Ohm

2.92mm Female RF Connector: 2-Hole Flange, Solderless Compression Mount, DC to 40GHz

Connector Series: 2.92 mm
Connector Gender: Female
Attachment Method: Clamp
Interface Type: Vertical Launch
Center Contact Material: Copper Gold Plated
Body Material: Stainless Steel
Impedance: 50 ohm
Frequency Range: DC to 40GHz
VSWR: ≤1.15:1
Voltage Rating: 150 V(rms)
Mating Cycles: ≥500 cycles
Operating Temperature: -40°C to +165°C
Insulators: PEI
MOQ & Customization: 1 Piece (Standard & Custom Designs, Global Orders Accepted)

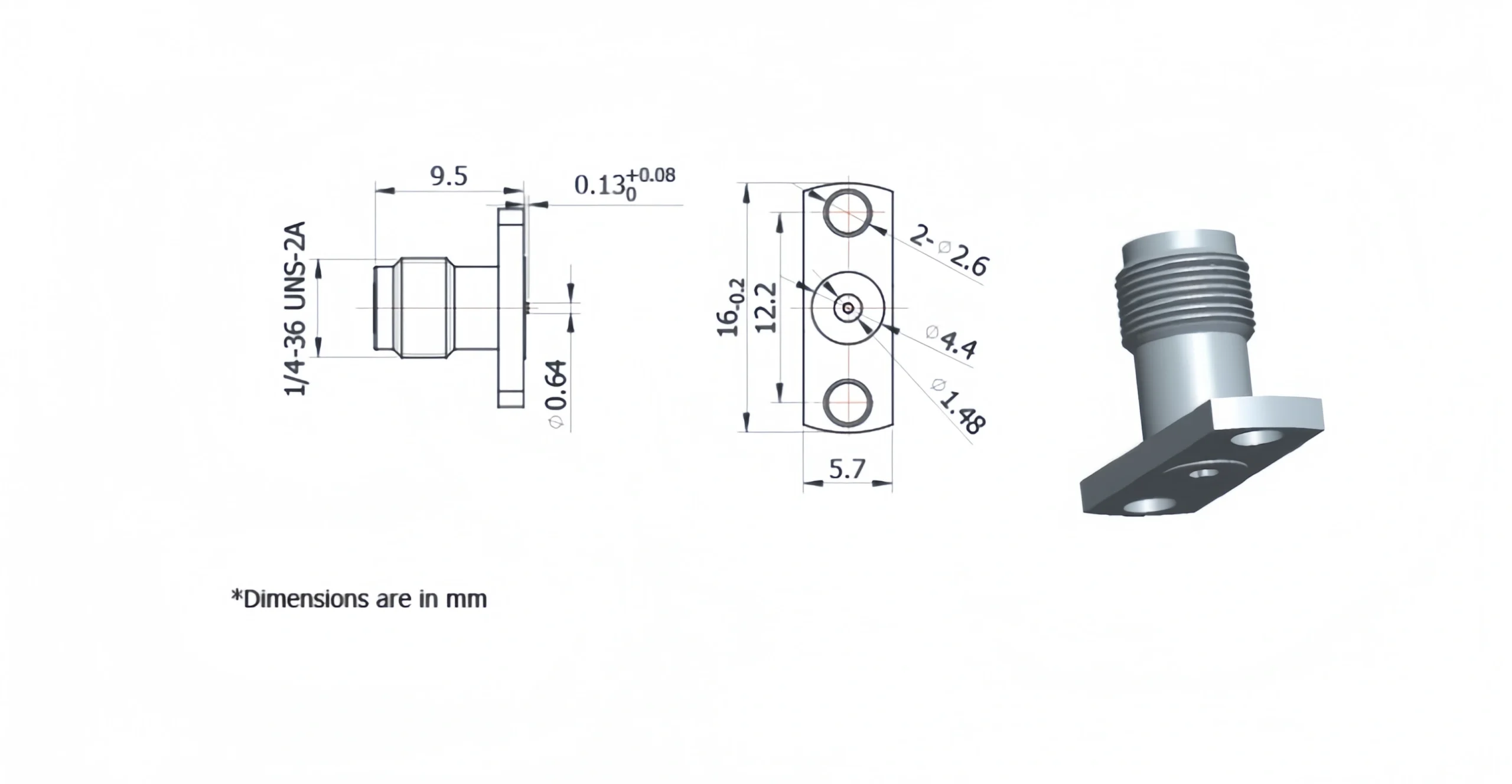

CAD data

PDF Download

Outstanding RF Performance of 2.92mm Female Connector

50-ohm impedance ensures precise signal integrity from DC to 40GHz
Exceptionally low VSWR ≤1.15:1 across the entire frequency spectrum
Minimal insertion loss (0.05×√f) maintains signal strength in high-frequency applications
Vertical launch interface design optimizes performance in stripline configurations

Premium Materials for Maximum Reliability

Gold-plated copper center contact delivers superior conductivity and corrosion resistance
Stainless steel body provides exceptional durability and mechanical strength
PEI insulators ensure stable performance across wide temperature ranges
Robust construction withstands harsh environmental conditions

Advanced Mechanical Design Features

Clamp attachment method enables quick and secure installation
Rated for ≥500 mating cycles without performance degradation
5-7 in-lbs mating torque ensures reliable connections in vibration-prone environments
Straight connector angle facilitates easy integration into various systems

Rigorous Environmental Compliance

Extended operating temperature range (-40°C to +165°C) for demanding applications
Full compliance with MIL-STD-202 standards for salt spray, vibration, and shock resistance
RoHS compliant construction meets global environmental requirements
Proven performance under extreme conditions including high altitude (70,000 ft)

Unmatched Ordering Flexibility & Global Support

Minimum order quantity of just 1 piece eliminates barriers for prototyping and small projects
Custom designs also start from 1 piece with comprehensive engineering support
Global orders welcome with competitive pricing and reliable logistics
Fast turnaround times for both standard and customized connector solutions

Quality Assurance & Technical Excellence

500V dielectric withstand voltage rating ensures electrical safety
≥500 Mohm insulation resistance guarantees reliable performance
Every unit undergoes strict quality control and performance verification
Expert technical support available for application-specific requirements

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	2.92mm Female RF Connector
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Connector Series	2.92 mm
	Connector Gender	Female
	Connector Angle	Straight
	Connector Mount Method	None
	Attachment Method	Clamp
	Interface Type	Vertical Launch
Material	Centre Contact	Copper, gold plated
	Body	Stainless Steel
	Insulators	PEI
Electrical Specifications	Impedance	50 ohm
	Frequency Range(From DC)	40GHz
	VSWR	≤1.15:1 (DC 0~40GHz)
	Insertion Loss	0.05 xSqt.(f_Ghz)
	Voltage Rating	150 V(rms)
	Dielectric Withstanding Voltage	500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	≥500 cycles
Mechanical Characteristics	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-40°C ~ +165°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
