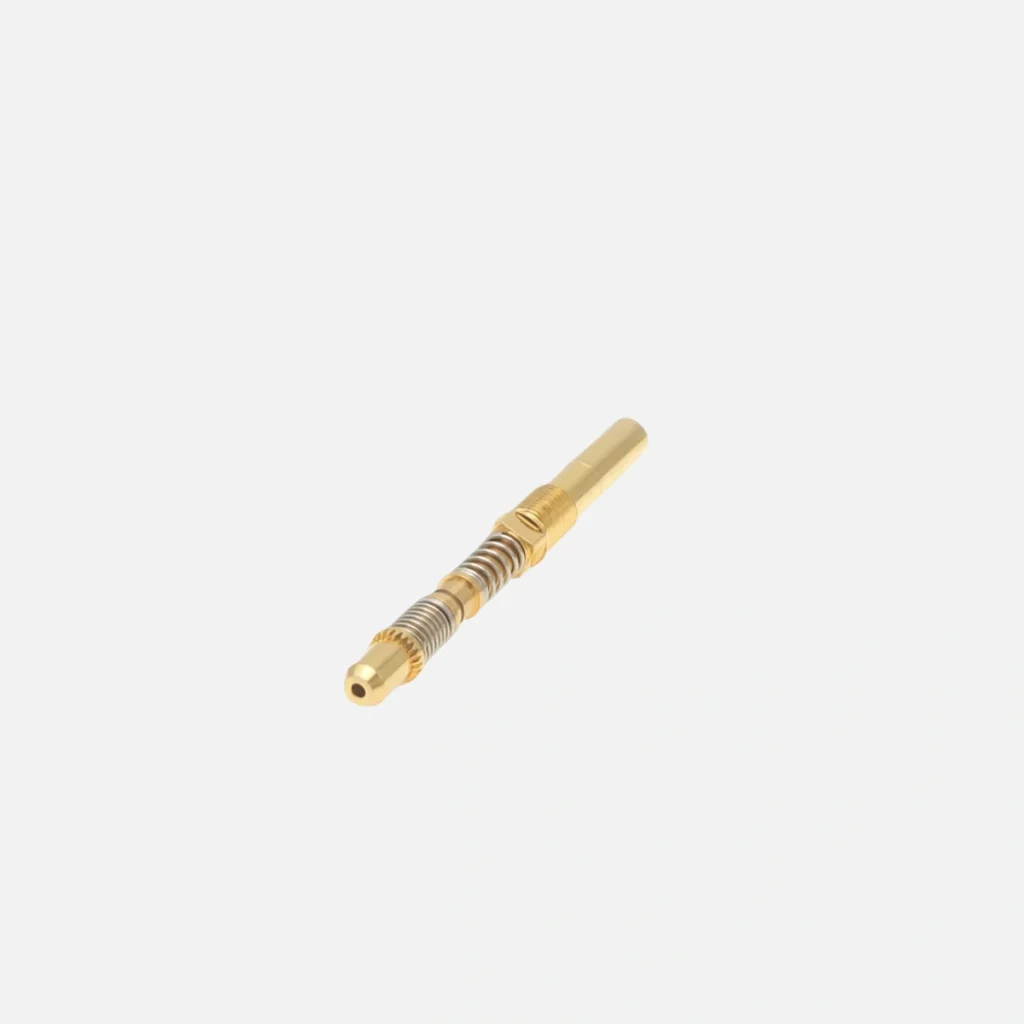

Automotive Mini FAKRA Test Probe

Automotive Mini FAKRA Test Probe | for Automotive Radar & ADAS Sensor Validation

Adapter Series 1 & 2: Mini SMP to Mini FAKRA
Adapter Gender: Male to Plug
Body Materials and Plating: Copper Alloy Gold Plated
Frequency Range (From DC): 12GHz
Impedance: 50 Ohm
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >100 V
Insulation Resistance: ≥500 Mohm
Probe Durability: ≥ 20000 cycles
Mating Cycles: SMPM side ≥ 500 cycles
Operating Temperature: -45°C ~ +80°C
Mating Torque: 5~7 in – lbs
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

Superior Performance for Demanding Applications

The Automotive Mini FAKRA Test Probe delivers exceptional signal integrity with its 6GHz bandwidth and precision 50-ohm impedance matching. Engineered with gold-plated contacts and robust housing, this Automotive Mini FAKRA test probe maintains excellent VSWR characteristics while withstanding rigorous testing environments. The compact Mini FAKRA interface ensures reliable connections for high-frequency automotive applications, providing consistent performance across extended testing cycles.

Comprehensive Automotive Testing Capabilities

This Automotive Mini FAKRA Test Probe enables thorough validation of critical vehicle systems including ADAS radar, infotainment systems, and V2X communication platforms. The probe’s wide frequency coverage makes it ideal for 77GHz radar development and 5G-based telematics applications. Automotive engineers worldwide rely on this Automotive Mini FAKRA probe for both prototype validation and production testing, ensuring system reliability before vehicle deployment across various automotive electronic systems.

Unmatched Flexibility and Accessibility

The Automotive Mini FAKRA Test Probe combines technical excellence with unprecedented procurement flexibility. We provide minimum order quantity of just 1 piece for all standard configurations, while customized Automotive Mini FAKRA test probes also start from 1 piece with worldwide order acceptance. This approach eliminates traditional procurement barriers, supported by military-grade environmental compliance and mechanical durability that ensures reliable performance under demanding automotive testing conditions.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	Automotive Mini FAKRA Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	Mini SMP
	Adapter Gender 1	Male
	Adapter Angle 1	Straight
	Adapter Mount Method 1	None
	Body Materials and Plating 1	Copper Alloy Gold Plated
	Adapter Series 2	Mini Fakra
	Adapter Gender 2	Plug
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Copper Alloy Gold Plated
Electric Specifications	Impedance	50ohm
	Frequency Range (From DC)	12GHz
	VSWR	TBD
	Insertion Loss	TBD
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMPM side ≥ 500 cycles
	Probe Durability	≥ 20000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +80°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

What is the minimum order quantity for the Automotive Mini FAKRA Test Probe?
We offer exceptional flexibility with a minimum order quantity of just 1 piece for all Automotive Mini FAKRA Test Probes, including custom designs, and we welcome orders from global customers.
What frequency range does the Automotive Mini FAKRA Probe support?
This Automotive Mini FAKRA Test Probe delivers reliable performance up to 6GHz, covering automotive radar and high-speed data applications.
What applications is the Automotive Mini FAKRA Test Probe designed for?
The Automotive Mini FAKRA Probe is specifically engineered for ADAS radar, infotainment systems, and V2X communication testing.
Can the Automotive Mini FAKRA Test Probe be customized?
Yes, we provide comprehensive customization options for Automotive Mini FAKRA Test Probes to meet specific application requirements.
What makes the Automotive Mini FAKRA Probe suitable for radar testing?
The Automotive Mini FAKRA Test Probe’s 6GHz bandwidth and stable impedance make it ideal for automotive radar frequency validation.
What are the environmental specifications of the Automotive Mini FAKRA Probe?
Our Automotive Mini FAKRA Test Probes are built to withstand automotive temperature ranges and vibration conditions.
How does the Automotive Mini FAKRA Probe ensure signal integrity?
This Automotive Mini FAKRA Test Probe maintains excellent VSWR characteristics and minimal insertion loss across its operating range.
What industries use the Automotive Mini FAKRA Test Probe?
The Automotive Mini FAKRA Probe primarily serves automotive OEMs and electronics suppliers worldwide.
What testing standards does the Automotive Mini FAKRA Probe comply with?
Our Automotive Mini FAKRA Test Probes meet automotive-grade reliability and performance standards.
Why choose your Automotive Mini FAKRA Test Probe?
We combine automotive-optimized performance with the unique advantage of 1-piece MOQ and global service capability.
