MCX Flange Mount Connector | 2-Hole Flange, 6GHz, 2mm Pin, 50 Ohm

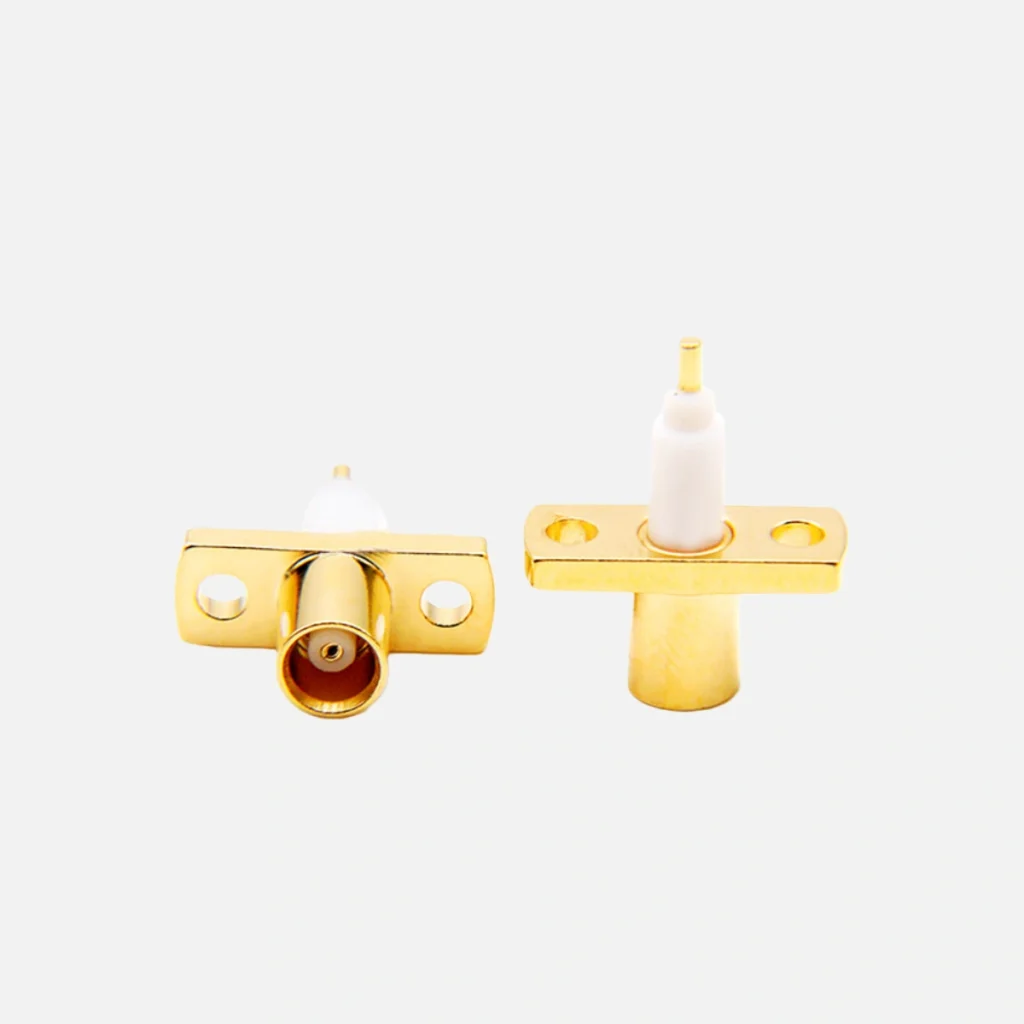

MCX Flange Mount Connector – 2-Hole Flange, 6GHz, 2mm Pin

Connector Series: MCX
Connector Gender: Female
Connector Mount Method: 2-Hole Flange
Interface Type: Stub Terminal
Impedance: 50 ohm
Frequency Range: DC to 6 GHz
VSWR: ≤1.25:1 (DC 0~6GHz)
Insertion Loss: 0.05 x√(f_GHz)
Voltage Rating: 150 V(rms)
Mating Cycles: ≥500 cycles
Center Contact Material: Brass, gold plated
Body Material: Brass, gold plated
Operating Temperature: -45°C to +125°C
RoHS Compliance: Yes
MOQ & Customization: 1 Piece (Standard & Custom Designs, Global Orders Accepted)

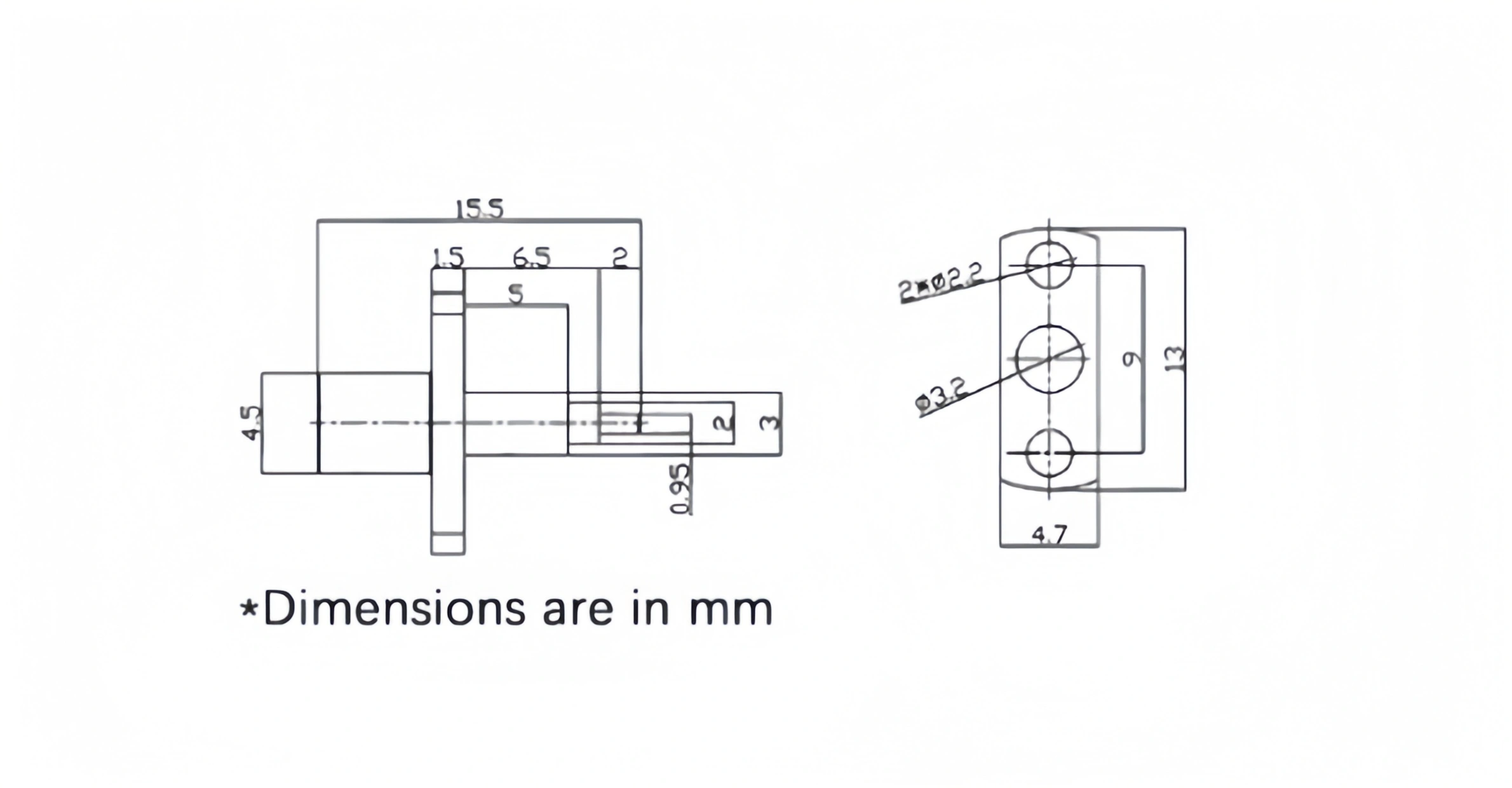

CAD data

PDF Download

MCX Flange Mount Connector: Compact RF Solution with Unmatched Flexibility

Designed for space-constrained applications requiring reliable RF performance, our MCX Flange Mount Connector offers the perfect combination of compact design and robust construction. This connector is ideal for wireless communications and test equipment while providing unprecedented procurement flexibility.

Revolutionary Ordering Flexibility

We’ve eliminated traditional procurement barriers to support projects of any scale with our flexible ordering system.

True Single-Piece Ordering: Our Minimum Order Quantity is just 1 piece – perfect for prototype development, testing phases, or specialized applications requiring precise quantities.
Complete Customization Support: Custom designs maintain the same 1-piece MOQ advantage – modify flange specifications, pin configurations, or performance parameters starting from a single unit.
Global Service Network: We efficiently process international orders from all regions, providing consistent quality and technical support worldwide.

Superior RF Performance in Compact Design

Engineered for applications where both space constraints and electrical performance are critical.

Reliable Frequency Coverage: Operates from DC to 6GHz, supporting wireless communications, GPS systems, and test equipment applications.
Excellent Signal Integrity: Maintains 50-ohm impedance with VSWR ≤1.25:1 across the operating band, ensuring minimal signal reflection.
Compact Flange Design: The 2-hole flange mounting provides secure mechanical attachment while maintaining a small footprint.

Robust Mechanical Construction

Built to withstand demanding environments while ensuring long-term reliability.

Premium Material Selection: Gold-plated brass contacts and housing ensure low resistance and superior corrosion resistance, complemented by PTFE insulators for electrical stability.
Secure Flange Mounting: 2-hole flange design ensures robust mechanical attachment, ideal for applications subject to vibration or mechanical stress.
Stub Terminal Interface: Provides reliable connection points for various RF system configurations.
Proven Durability: Rated for ≥500 mating cycles, guaranteeing consistent performance in demanding applications.

Comprehensive Quality Assurance

Rigorous Environmental Testing: Meets MIL-STD-202 standards for vibration, shock, thermal shock, and salt spray corrosion resistance.
Extended Temperature Range: Operates reliably from -45°C to +125°C, suitable for industrial, commercial, and outdoor applications.
Environmental Compliance: Fully RoHS compliant, meeting international environmental standards and regulatory requirements.

Enhance your RF system reliability with our compact MCX flange mount connector. Benefit from single-piece sourcing combined with superior RF performance. Contact us today for standard or custom MCX connector solutions to meet your specific application requirements.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	MCX Flange Mount Connector
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Connector Series	MCX
	Connector Gender	Female
	Connector Angle	Straight
	Connector Mount Method	2-Hole Flange
	Attachment Method	Solder
	Interface Type	Stub Terminal
Material	Centre Contact	Brass, gold plated
	Body	Brass, gold plated
	Insulators	PTFE
Electrical Specifications	Impedance	50 ohm
	Frequency Range(From DC)	6GHZ
	VSWR	≤1.25:1 (DC 0~6GHz)
	Insertion Loss	0.05 xSqt.(f_Ghz)
	Voltage Rating	150 V(rms)
	Dielectric Withstanding Voltage	500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	≥500 cycles
Mechanical Characteristics	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. What is your minimum order quantity and does it apply to custom designs?
Our MOQ is just 1 piece, and this applies to both standard and custom designs. We accept global orders for all prototyping and production requirements.

2. What is the frequency range of this MCX connector?
This connector supports frequencies up to 6GHz, suitable for various wireless and RF applications.

3. What are the flange mounting specifications?
This connector features a secure 2-hole flange mount design for robust mechanical attachment.

4. What is the pin diameter specification?
The connector features a 2mm pin diameter for reliable electrical connection.

5. What is the insulator length?
The extended insulator measures 6.5mm for enhanced electrical performance.

6. What is the connector’s impedance rating?
This is a standard 50 ohm impedance connector, ensuring excellent signal integrity.

7. What materials are used in construction?
It features gold-plated brass contacts and body with PTFE insulators for optimal RF performance.

8. How many mating cycles is it rated for?
The connector is rated for ≥500 mating cycles, ensuring long-term reliability.

9. What is the operating temperature range?
It operates from -45°C to +125°C, suitable for various environmental conditions.

10. Is this connector RoHS compliant?
Yes, it’s fully RoHS compliant, meeting international environmental standards.
