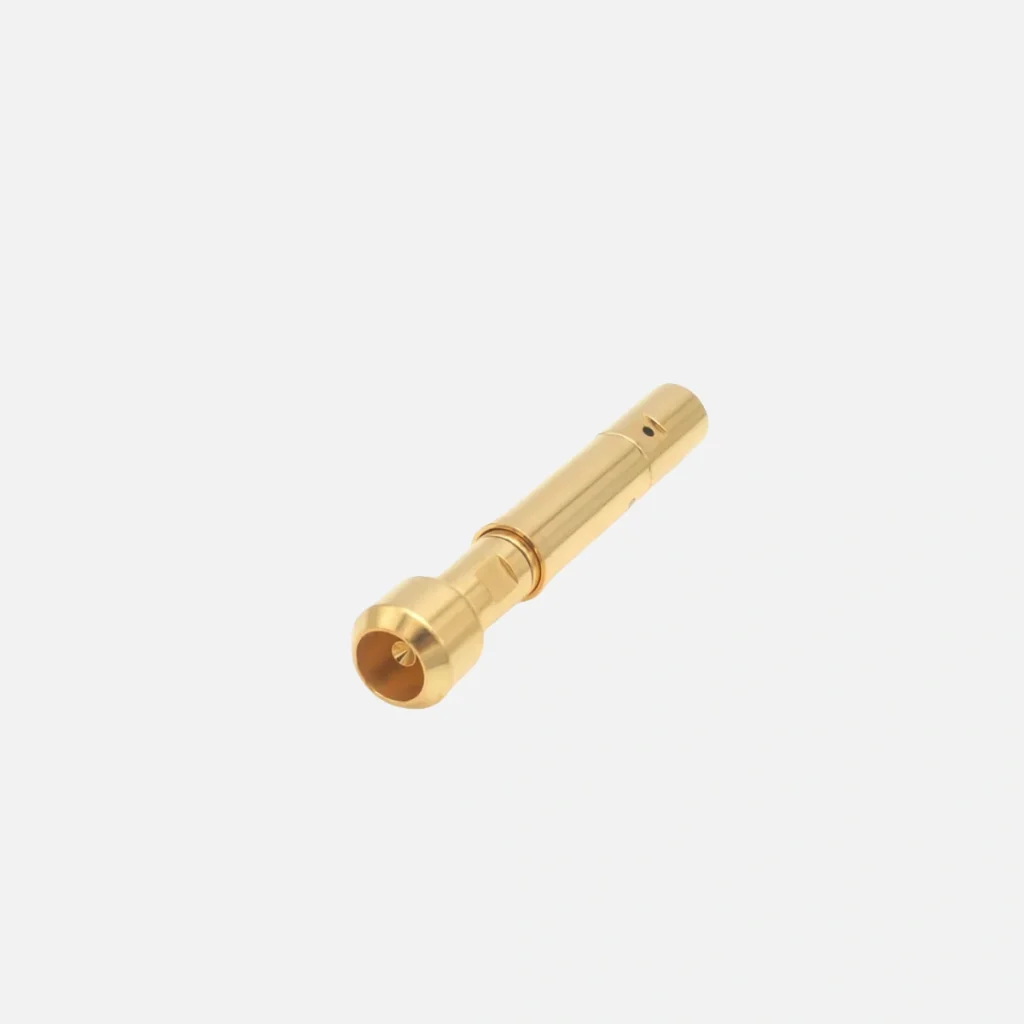

MCX to FAKRA Automotive Test Probe

MCX to FAKRA Automotive Test Probe | for High-Frequency Automotive Applications

Adapter Series 1 & 2: MCX to FAKRA
Adapter Gender: Female to Plug
Body Materials and Plating: Copper Alloy Gold Plated
Frequency Range (From DC): 6GHz
Impedance: 50 Ohm
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >100 V
Insulation Resistance: ≥500 Mohm
Probe Durability: ≥ 20000 cycles
Mating Cycles: MCX side ≥ 500 cycles
Operating Temperature: -45°C ~ +80°C
Mating Torque: 5~7 in – lbs
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

MCX to FAKRA Automotive Test Probe: Precision Interconnects for Automotive RF Systems

Our MCX to FAKRA Automotive Test Probes are engineered to provide reliable interconnections between test equipment and automotive RF components. These probes feature an MCX female connector on the instrument end and a standardized FAKRA plug interface on the device under test (DUT) side, ensuring seamless compatibility with automotive antenna systems, GPS modules, and telematics units. Built to operate from DC to 6GHz with consistent 50-ohm impedance, these MCX to FAKRA Automotive Test Probes maintain excellent signal integrity through thousands of mating cycles, making them ideal for both R&D validation and production line testing environments.

Critical Applications in Modern Automotive Testing

The primary application of our MCX to FAKRA Automotive Test Probes is in vehicle RF system validation and manufacturing. They are specifically designed for testing:

Automotive antenna systems including AM/FM, satellite radio, and 5G connectivity
GPS and GNSS navigation modules for accuracy verification
Telematics control units and vehicle-to-everything (V2X) communication systems
Infotainment system components requiring RF signal integrity validation

These MCX to FAKRA Automotive Test Probes ensure precise measurements during critical development phases and high-throughput production testing, delivering reliable performance across all automotive environmental conditions.

Unmatched Flexibility and Performance Advantages

We differentiate ourselves through exceptional flexibility that accelerates innovation. While maintaining superior electrical performance with low VSWR characteristics, our most significant advantage remains our minimum order quantity of just 1 unit. This groundbreaking policy extends to all custom requirements – custom product orders also start at just 1 piece, with global order acceptance. Whether you need standard MCX to FAKRA Automotive Test Probes or customized solutions with unique interface combinations, cable lengths, or performance specifications, we provide:

No minimum quantity barriers for prototyping or production
Rapid customization with engineering support
Global logistics ensuring timely delivery worldwide
Cost-effective solutions without compromising quality

This approach eliminates traditional procurement constraints, enabling faster development cycles and more agile manufacturing processes for automotive RF validation.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	MCX to FAKRA Automotive Test Probes
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	MCX
	Adapter Gender 1	Female
	Adapter Angle 1	Straight
	Adapter Mount Method 1	None
	Body Materials and Plating 1	Copper Alloy Gold Plated
	Adapter Series 2	Fakra
	Adapter Gender 2	Plug
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Copper Alloy Gold Plated
Electric Specifications	Impedance	50ohm
	Frequency Range (From DC)	6GHz
	VSWR	TBD
	Insertion Loss	TBD
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	MCX side ≥ 500 cycles
	Probe Durability	≥ 20000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +80°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. What is your minimum order quantity for MCX to FAKRA Automotive Test Probes?
We proudly maintain a 1-piece MOQ policy for all orders. Importantly, custom MCX to FAKRA Automotive Test Probes also start at 1 piece, and we accept orders globally, making us the ideal partner for prototyping and low-volume production.

2. What frequency range do your MCX to FAKRA Automotive Test Probes support?
Our MCX to FAKRA Automotive Test Probes operate from DC to 6GHz, covering the complete spectrum of automotive RF applications including 5G, GPS, and vehicle connectivity systems.

3. What makes your MCX to FAKRA Automotive Test Probes suitable for automotive production environments?
These MCX to FAKRA Automotive Test Probes feature robust construction with high-cycle durability, specifically engineered to withstand the demands of automotive production testing while maintaining consistent RF performance.

4. Can you customize the interface types on your MCX to FAKRA Automotive Test Probes?
Yes, we regularly customize interface combinations, cable lengths, and electrical specifications for our MCX to FAKRA Automotive Test Probes, all available starting from just 1 unit.

5. What is the typical VSWR performance of your MCX to FAKRA Automotive Test Probes?
Our MCX to FAKRA Automotive Test Probes are optimized for low VSWR across their operating bandwidth, ensuring accurate measurements in demanding automotive testing scenarios.

6. How do your MCX to FAKRA Automotive Test Probes ensure signal integrity?
We use premium materials including gold-plated contacts and low-loss dielectric in our MCX to FAKRA Automotive Test Probes to minimize insertion loss and maintain impedance stability.

7. What delivery time can I expect for custom MCX to FAKRA Automotive Test Probes?
Custom MCX to FAKRA RF Test Probes typically ship within 1-2 weeks, even for single-piece orders, with expedited options available for urgent project requirements.

8. Are your MCX to FAKRA Automotive Test Probes compatible with major automotive test systems?
Yes, our MCX to FAKRA Automotive Test Probes are designed to industry standards and compatible with all major automotive test platforms and probe stations.

9. What quality certifications do your MCX to FAKRA Automotive Test Probes meet?
Our MCX to FAKRA Automotive Test Probes are manufactured under strict quality controls and can be supplied with full compliance documentation for automotive quality standards.

10. Do you provide technical support for MCX to FAKRA Automotive Test Probes integration?
Our engineering team provides comprehensive technical support for all MCX to FAKRA Automotive Test Probes applications, from system integration to custom solution development.
