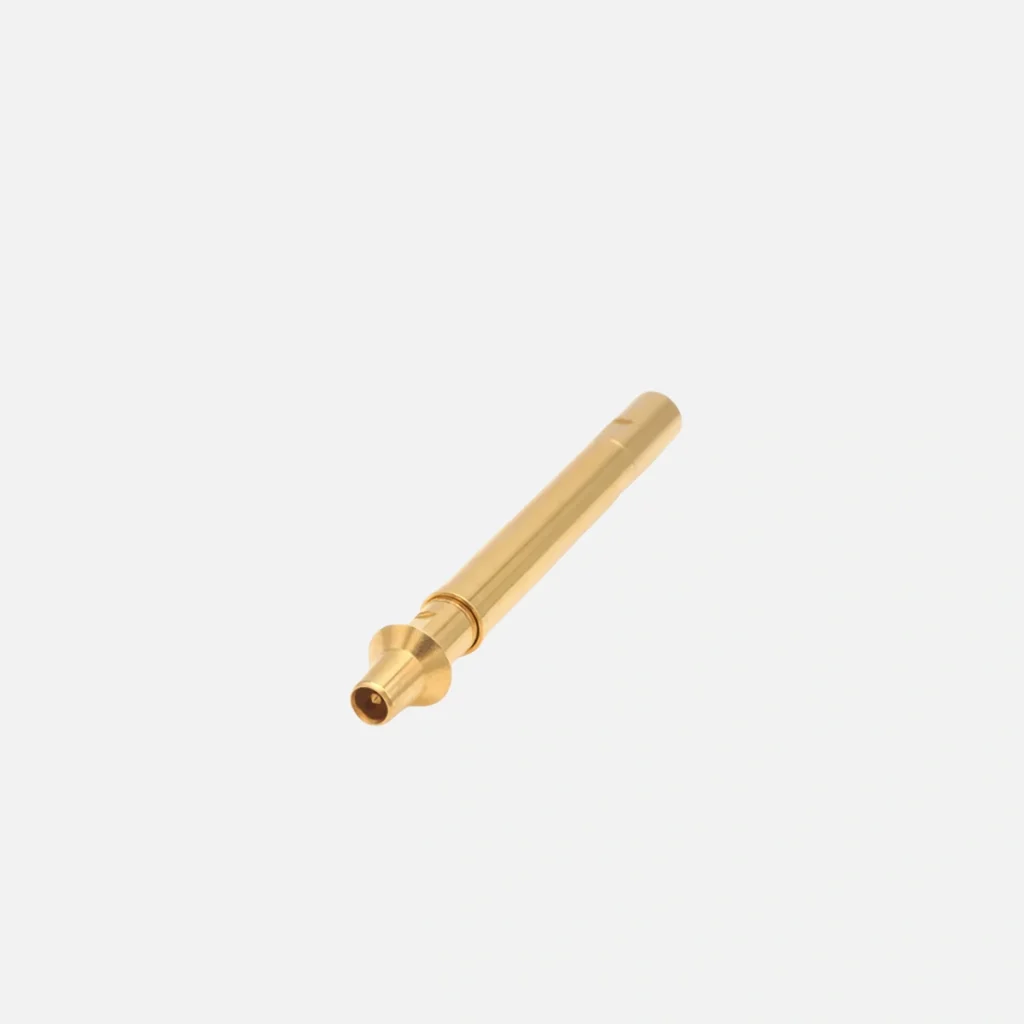

MCX to FAKRA Jack RF Test Probe

MCX to FAKRA Jack RF Test Probe：HFS-840 308 080 A 8042 | 4GHz Automotive Testing Solution

Adapter Series 1 & 2: MCX to FAKRA
Adapter Gender: Female to Jack
Body Materials and Plating: Copper Alloy Gold Plated
Frequency Range (From DC): 4GHz
Impedance: 50 Ohm
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >100 V
Insulation Resistance: ≥500 Mohm
Probe Durability: ≥ 20000 cycles
Mating Cycles: MCX side ≥ 500 cycles
Operating Temperature: -45°C ~ +80°C
Mating Torque: 5~7 in – lbs
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

Precision Engineering for Automotive Validation

The MCX to FAKRA Jack RF Test Probe (HFS-840 308 080 A 8042) delivers reliable signal integrity with full 4GHz bandwidth and optimized 50-ohm impedance. Featuring gold-plated contacts and corrosion-resistant housing, this FAKRA Automotive Test Probe maintains stable performance through extended mating cycles while withstanding automotive environmental challenges.

Comprehensive Vehicle System Testing

This MCX to FAKRA Jack RF Test Probe enables accurate validation of automotive infotainment systems, GPS navigation modules, telematics control units, and vehicle connectivity platforms. Engineered for seamless integration with standard FAKRA interfaces, the probe serves global automotive manufacturers and testing facilities requiring consistent RF performance across development and production phases.

Certified Quality with Unmatched Flexibility

As an ISO certified manufacturer, we guarantee precision manufacturing and consistent quality across every MCX to FAKRA Jack RF Test Probe. Our customer-focused approach provides minimum order quantity of just 1 piece for all standard and custom configurations. We support global wholesale supply with custom orders starting from 1 piece, eliminating traditional procurement barriers while maintaining certified quality standards for projects of any scale.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	MCX to FAKRA Jack RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	MCX
	Adapter Gender 1	Female
	Adapter Angle 1	Straight
	Adapter Mount Method 1	None
	Body Materials and Plating 1	Copper Alloy Gold Plated
	Adapter Series 2	Fakra
	Adapter Gender 2	Jack
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Copper Alloy Gold Plated
Electric Specifications	Impedance	50ohm
	Frequency Range (From DC)	4GHz
	VSWR	TBD
	Insertion Loss	TBD
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	MCX side ≥ 500 cycles
	Probe Durability	≥ 20000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +80°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

What is the minimum order quantity for the MCX to FAKRA Jack RF Test Probe?
We maintain minimum order quantity of just 1 piece for all standard and custom MCX to FAKRA Jack RF Test Probes, supporting global customers with flexible wholesale solutions.
What certification does your manufacturing process hold?
Our production facility is ISO certified, ensuring consistent quality and reliability for every MCX to FAKRA Jack RF Test Probe we deliver.
What frequency range does this FAKRA test probe support?
This MCX to FAKRA Jack RF Test Probe provides full 4GHz bandwidth coverage, suitable for most automotive wireless communication protocols.
Can you customize the probe connectors or cable length?
Yes, we specialize in custom MCX to FAKRA Jack RF Test Probe configurations, offering modified interfaces, cable specifications, and performance parameters with the same 1-piece MOQ policy.
What applications is this probe designed for?
The MCX to FAKRA Jack RF Test Probe is optimized for automotive infotainment testing, GPS module validation, telematics system verification, and general vehicle connectivity testing.
Do you provide wholesale pricing for larger quantities?
Yes, we offer competitive wholesale supply programs for bulk purchases of MCX to FAKRA Jack RF Test Probes while maintaining our flexible 1-piece MOQ for standard orders.
How durable are the probe connections?
Our MCX to FAKRA Jack RF Test Probe features precision-machined connectors rated for hundreds of mating cycles, ensuring long-term reliability in testing environments.
What quality standards do your products meet?
All MCX to FAKRA Jack RF Test Probes are manufactured under ISO certified processes and undergo rigorous electrical and mechanical validation before shipment.
Do you support global shipping?
Yes, we provide global wholesale supply for all MCX to FAKRA Jack RF Test Probe orders, from single pieces to large quantity purchases.
Why choose your MCX to FAKRA Test Probe?
We combine ISO certified manufacturing with unprecedented flexibility – offering 1-piece MOQ, custom solutions, and global supply chain support for all your automotive testing needs.
