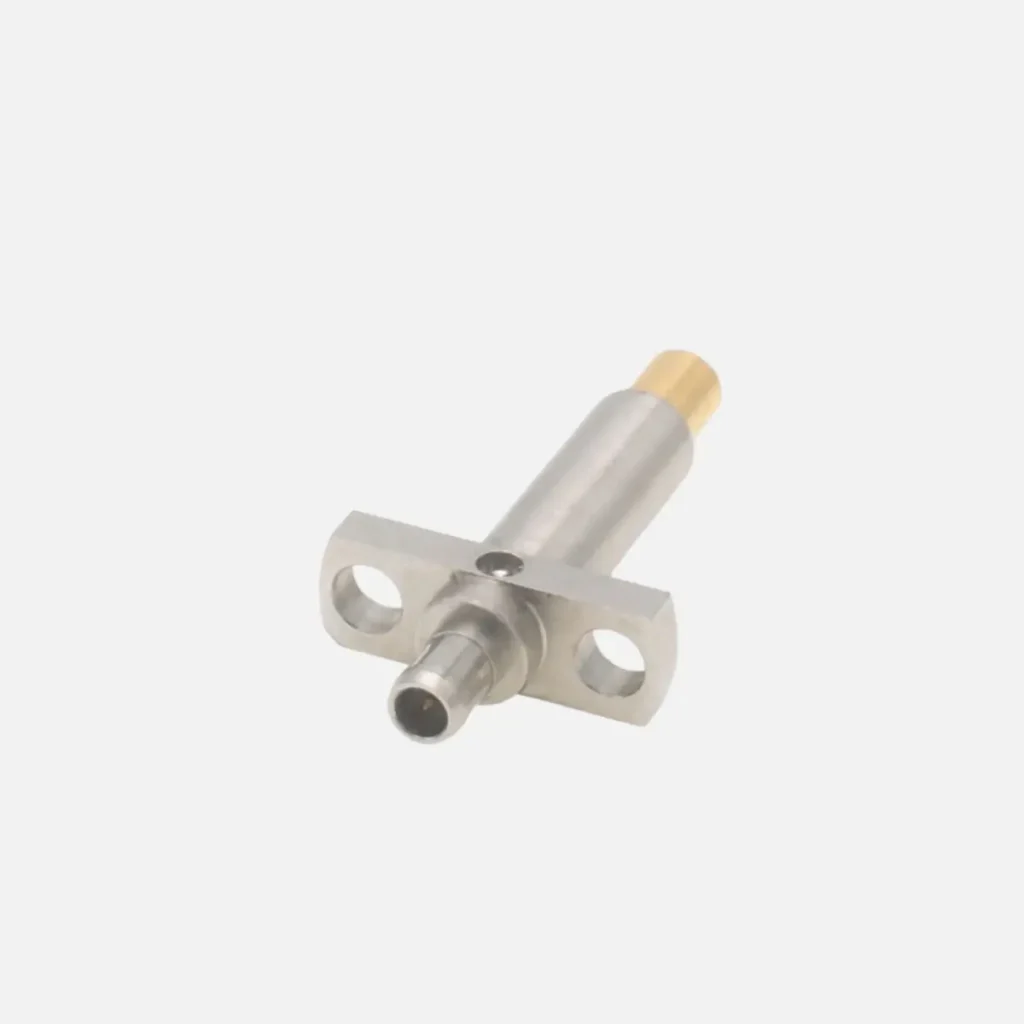

MHF4/IPEX RF Test Probe

MHF4/IPEX RF Test Probe | for High-Frequency Miniature Applications

Adapter Series 1 & 2: MHF4 to N54 C
Adapter Gender: Male
Body Materials and Plating: Be-Cu Gold Plated
Frequency Range (From DC): 12GHz
VSWR: ≤2.3:1 (DC 0~12GHz)
Impedance: 50 Ohm
Insertion Loss: ≤1.0dB (DC 0~12GHz)
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >500 V
Probe Durability: ≥ 10000 cycles
Mating Cycles: N54 C ≥ 200 cycles
Operating Temperature: -45°C ~ +125°C
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

MHF4/IPEX RF Test Probes: Precision Solutions for Miniature RF Testing

Our MHF4/IPEX RF Test Probes represent the cutting edge in miniature RF testing technology, designed specifically for today’s compact electronic devices. These probes feature a standardized MHF4/IPEX receptacle interface that ensures perfect compatibility with miniature coaxial connectors found in IoT devices, 5G modules, and automotive electronics. Engineered to operate from DC to 12GHz while maintaining consistent 50-ohm impedance, these MHF4/IPEX RF Test Probes deliver exceptional signal integrity through thousands of mating cycles, making them indispensable for both R&D validation and high-volume production testing of miniaturized components.

Critical Applications in Modern Electronics Manufacturing

The unique design of our MHF4/IPEX RF Test Probes makes them essential across multiple high-tech industries. They are particularly valuable for:

5G and WiFi 6/6E module testing in smartphones and networking equipment
IoT device validation for wearables, smart home devices, and industrial sensors
Automotive electronics testing including infotainment systems and telematics
Medical device RF validation where miniaturization is critical
Drone and aerospace electronics requiring reliable RF connections

These MHF4/IPEX RF Test Probes enable precise measurements in space-constrained applications, ensuring reliable performance in the most demanding miniaturized electronic environments.

Unmatched Flexibility in Miniature RF Testing

We revolutionize miniature RF testing by eliminating traditional barriers to innovation. While delivering superior high-frequency performance with excellent return loss characteristics, our most significant advantage remains our minimum order quantity of just 1 unit. This industry-leading policy extends to all custom requirements – custom MHF4/IPEX RF Test Probes also start at just 1 piece, with global order acceptance. Whether you need standard MHF4/IPEX RF Test Probes or specialized solutions with unique interface configurations, cable lengths, or performance specifications, we provide:

No minimum quantity barriers for prototyping or production
Rapid customization with expert engineering support
Global logistics network ensuring timely delivery worldwide
Cost-optimized solutions without compromising on quality

This approach empowers faster development cycles and more flexible manufacturing processes for miniature RF device validation across all industries.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	MHF4/IPEX RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	MHF4
	Adapter Gender 1	Male
	Adapter Angle 1	Straight
	Adapter Mount Method 1	None
	Body Materials and Plating 1	Be-Cu Gold Plated
	Adapter Series 2	N54 C
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	2 Hole Flange
	Body Materials and Plating 2	Be-Cu, Gold Plated
Electric Specifications	Impedance	50ohm
	Frequency Range (From DC)	12GHz
	VSWR	≤2.3:1 (DC 0~12GHz)
	Insertion Loss	≤1.0dB (DC 0~12GHz)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	N54 C ≥ 200 cycles
	Probe Durability	≥ 10000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
