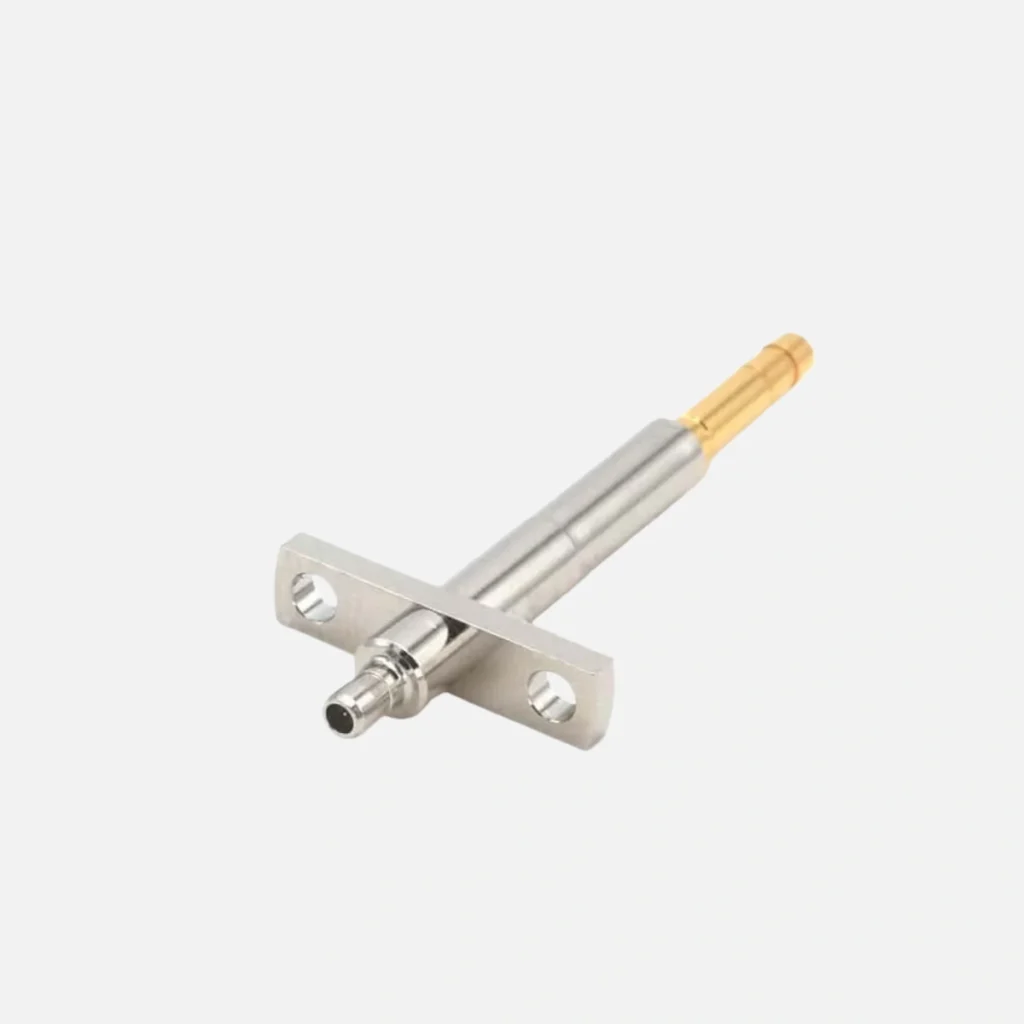

ML51 to MS180 RF Test Probe

ML51 to MS180 RF Test Probe：6GHz, Military Grade, 10,000+ Cycles

Adapter Series 1 & 2: ML51 to MS180
Adapter Gender: Jack to Male
Frequency Range (From DC): 6GHz
VSWR: ≤1.4:1 (DC 0~6GHz)
Impedance: 50 Ohm
Insertion Loss: ≤0.6dB (DC 0~6GHz)
Body Materials and Plating: Stainless Steel Passivated & Be-Cu Gold Plated
Probe Durability: ≥ 10000 cycles
Mating Cycles: ML51 ≥ 500 cycles
Operating Temperature: -45°C ~ +125°C
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >100 V
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

ML51 to MS180 RF Test Probes Product Introduction

Overview

Our ML51 to MS180 RF Test Probes deliver uncompromising performance for military and aerospace testing applications. Engineered with an ML51 Jack to MS180 Male interface, these probes maintain exceptional signal integrity from DC to 6 GHz, making them the ideal solution for demanding defense and aerospace validation.

Features

No Minimum Order Barrier: We accept custom and standard orders with a 1-piece MOQ worldwide, perfectly supporting both prototype development and military production.
Superior RF Performance: 50Ω impedance with VSWR ≤1.4:1 ensures accurate signal transmission with minimal insertion loss up to 6 GHz.
Exceptional Durability: Robust construction withstands over 10,000 mating cycles, guaranteeing longevity in military test environments.
Military-Grade Construction: Featuring stainless steel and beryllium copper with gold plating, the ML51 to MS180 interface guarantees reliable connections in harsh conditions.
Rugged Environmental Reliability: Compliant with MIL-STD-202 standards, ensuring stable performance under extreme temperatures, vibration, and shock.

Applications

Our ML51 to MS180 RF Test Probes are ideal for:

Military Communications Systems
Aerospace and Avionics Testing
Radar and EW Equipment
Ground Support Systems
Satellite Communications
Defense Electronics Validation

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	ML51 to MS180 RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	ML51
	Adapter Gender 1	Jack
	Adapter Angle 1	Straight
	Adapter Mount Method 1	2 Hole Flange
	Body Materials and Plating 1	Stainless Steel Passivated
	Adapter Series 2	MS180
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Be-Cu, Gold Plated
Electric Specifications	Impedance	50 Ohm
	Frequency Range(From DC)	6GHz
	VSWR	≤1.4:1 (DC 0~6GHz)
	Insertion Loss	≤0.6dB(dc 0~6GHz)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	ML51≥ 500 cycles
	Probe Durability	≥ 10000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. Q: What is your minimum order quantity, and do you support custom designs?
A: Yes! We accept both standard and custom orders with a minimum order quantity of just 1 piece. We serve global clients with no volume restrictions.

2. Q: What are the typical applications for this ML51 to MS180 probe?
A: It is designed for military communications, aerospace systems, radar equipment, and ground support systems requiring reliable RF connections.

3. Q: What military standards does this probe comply with?
A: The probe meets MIL-STD-202 specifications for vibration, shock, thermal shock, salt spray, and altitude testing.

4. Q: What is the expected service life of this probe?
A: With ≥10,000 mating cycles, this probe offers exceptional durability for both field and production testing environments.

5. Q: Why are different materials used for each interface?
A: Stainless steel provides ruggedness for the ML51 jack, while beryllium copper with gold plating ensures optimal RF performance for the MS180 male interface.

6. Q: Can this probe withstand harsh environmental conditions?
A: Yes, it operates reliably from -45°C to +125°C and withstands salt spray, high vibration (20 Gs), and shock (100 Gs) per MIL-STD-202.

7. Q: What is the mating cycle rating for the ML51 connector?
A: The ML51 interface is rated for ≥500 mating cycles, ensuring reliable performance in frequently connected applications.

8. Q: Can I order a single unit for prototype testing?
A: Absolutely. Our 1-piece MOQ policy is specifically designed to support prototype development and testing validation.

9. Q: What makes this probe suitable for military applications?
A: The combination of MIL-spec connectors, military-grade materials, and full MIL-STD-202 compliance makes it ideal for demanding defense applications.

10. Q: How do I request a custom version of this probe?
A: Contact us with your specific requirements. We specialize in military-grade custom solutions with 1-piece MOQ and provide global technical support.
