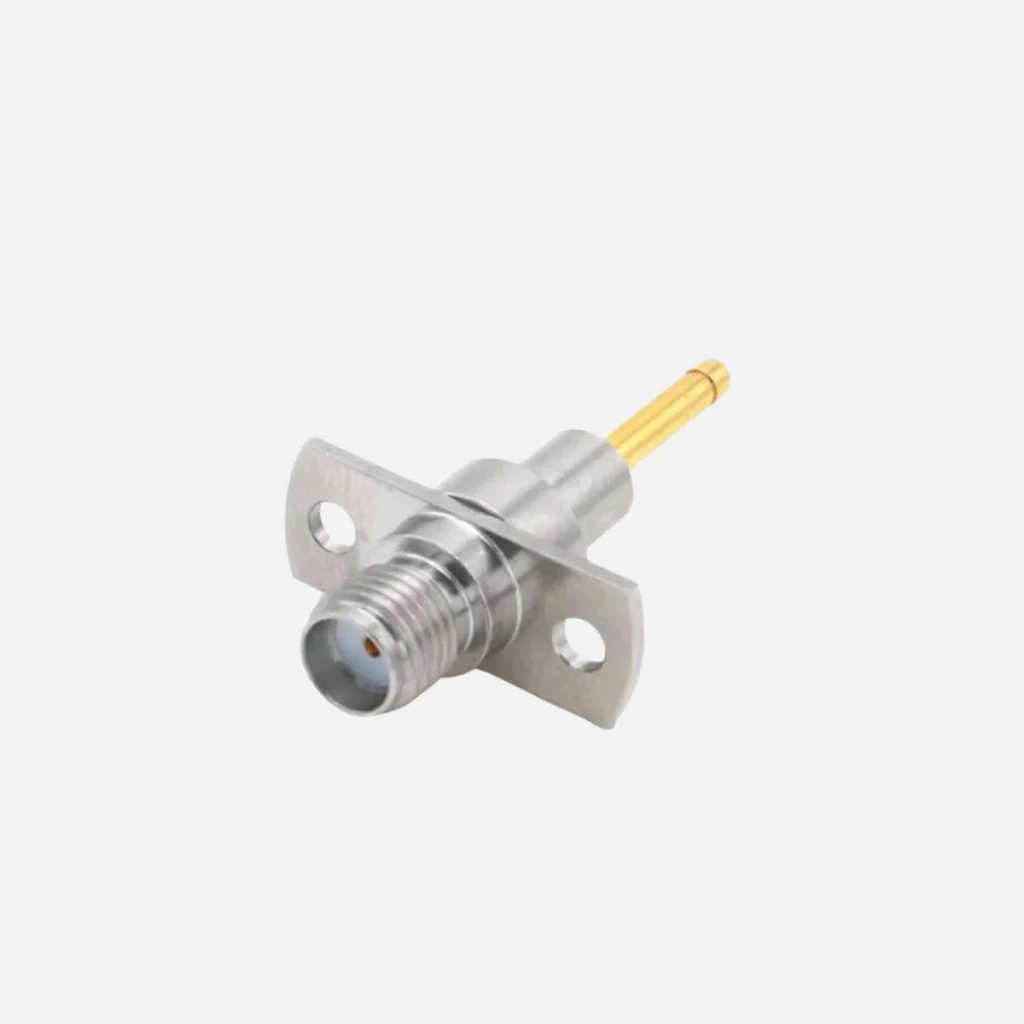

SMA to MS180 RF Test Probe

SMA to MS180 RF Test Probe：Military & Aerospace RF Testing Solution

Adapter Series 1 & 2: SMA to MS180
Adapter Gender: Female to Male
Body Materials and Plating: Brass Nickel & Be-Cu Gold Plated
Frequency Range (From DC): 6GHz
VSWR: ≤1.4:1 (DC 0~6GHz)
Impedance: 50 Ohm
Insertion Loss: ≤0.6dB (DC 0~6GHz)
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >100 V
Probe Durability: ≥ 10000 cycles
Mating Cycles: SMA ≥ 500 cycles
Operating Temperature: -45°C ~ +125°C
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

REECUFUTURE SMA to MS180 RF Test Probe: Rugged RF Testing Solution

Product Overview
The SMA to MS180 RF Test Probe delivers robust performance for demanding RF testing applications in harsh environments. Featuring a precision SMA female to MS180 male configuration with 2-hole flange mounting, this probe ensures reliable connectivity and excellent signal integrity. With brass nickel-plated and beryllium copper gold-plated construction, the SMA to MS180 RF Test Probe maintains superior electrical characteristics while providing exceptional mechanical durability for rigorous testing cycles up to 6GHz.

Primary Applications
This SMA to MS180 RF Test Probe is specifically engineered for military communications, aerospace systems, defense electronics, and rugged industrial applications. It serves defense contractors, aerospace manufacturers, and industrial equipment providers worldwide, providing accurate RF performance validation for critical systems operating in challenging environments within the 6GHz spectrum.

Key Advantages
Our SMA to MS180 RF Test Probe offers outstanding benefits: Most significantly, we provide minimum order quantity of just 1 piece, making professional-grade testing solutions accessible for projects of all scales. Moreover, customized probe configurations also start from 1 piece with global order acceptance, delivering unprecedented flexibility for specialized requirements. The probe’s military-spec environmental compliance and optimized electrical performance ensure reliable operation under extreme conditions, while the rugged construction guarantees long-term durability in the most demanding applications.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMA to MS180 RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	SMA
	Adapter Gender 1	Female
	Adapter Angle 1	Straight
	Adapter Mount Method 1	2 Hole Flange
	Body Materials and Plating 1	Brass Nickel Plated
	Adapter Series 2	MS180
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Beryllium Copper, Gold Plated
Electric Specifications	Impedance	50ohm
	Frequency Range (From DC)	6GHz
	VSWR	≤1.4:1 (DC 0~6GHz)
	Insertion Loss	≤0.6dB (DC 0~6GHz)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMA ≥ 500 cycles
	Probe Durability	≥ 10000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107, Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. What is your minimum order quantity for the SMA to MS180 RF Test Probe?
We maintain a 1-piece minimum order quantity for both standard and custom SMA to MS180 RF Test Probes, serving clients globally with no minimum order value requirements.

2. What frequency range does the SMA to MS180 RF Test Probe support?
The SMA to MS180 RF Test Probe operates from DC to 6GHz, ideal for military and aerospace RF testing applications.

3. What are the primary applications for the SMA to MS180 RF Test Probe?
This SMA to MS180 RF Test Probe is designed for military communications, aerospace systems, defense electronics, and rugged industrial applications.

4. How does the SMA to MS180 RF Test Probe ensure signal quality?
The SMA to MS180 RF Test Probe features VSWR ≤1.4:1 and insertion loss ≤0.6dB across the entire frequency range.

5. What materials are used in the SMA to MS180 RF Test Probe construction?
The SMA to MS180 RF Test Probe utilizes brass nickel-plated and beryllium copper gold-plated materials for optimal performance.

6. What environmental standards does the SMA to MS180 RF Test Probe meet?
Our SMA to MS180 RF Test Probe complies with MIL-STD-202 environmental specifications and RoHS requirements.

7. Can the SMA to MS180 RF Test Probe withstand harsh environmental conditions?
Yes, the SMA to MS180 RF Test Probe operates from -45°C to +125°C and meets military-grade vibration and shock standards.

8. What mounting options are available for the SMA to MS180 RF Test Probe?
The SMA to MS180 RF Test Probe features 2-hole flange mounting for secure installation in demanding applications.

9. Do you provide technical support for SMA to MS180 RF Test Probe integration?
Yes, we offer comprehensive technical support for all SMA to MS180 RF Test Probe applications and system integration requirements.

10. What is the delivery timeline for custom SMA to MS180 RF Test Probes?
Custom SMA to MS180 RF Test Probes typically ship within 2-3 weeks, including single-piece custom orders for specialized applications.
