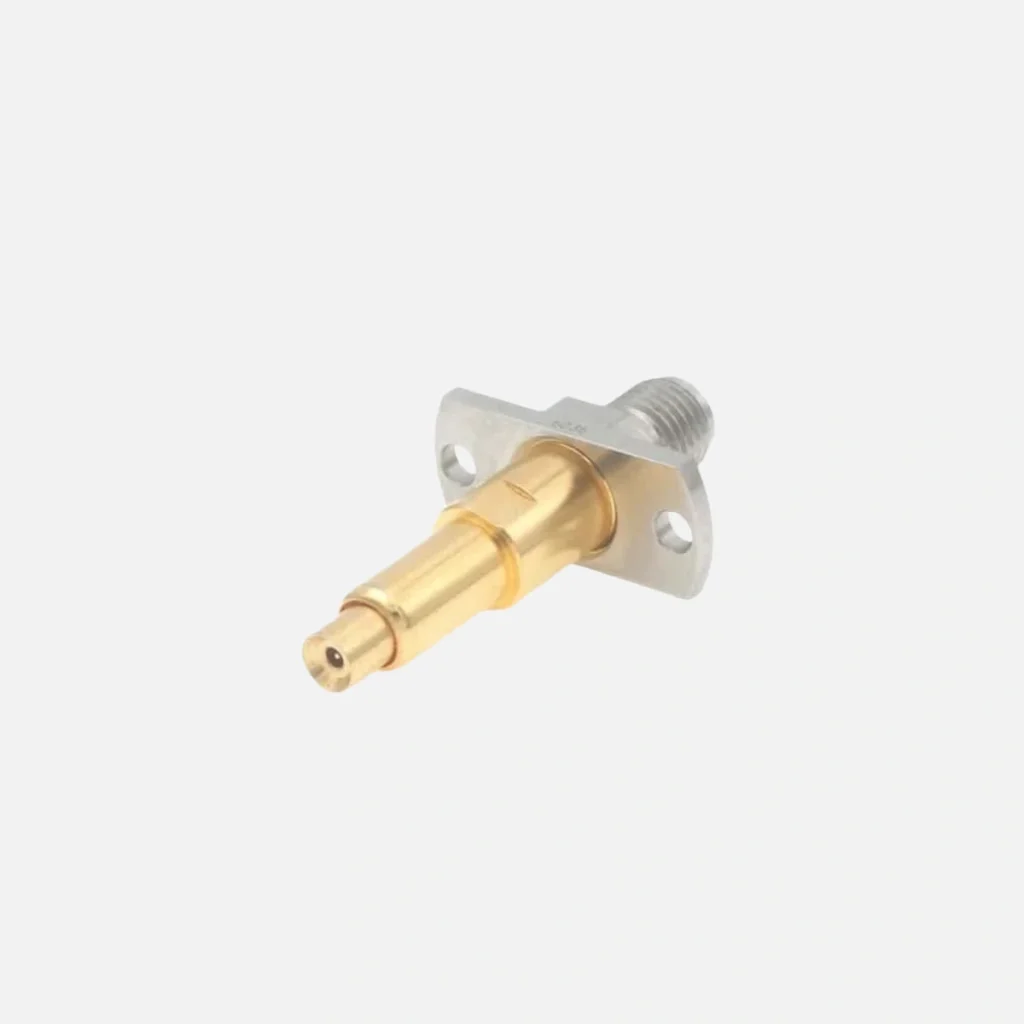

SMA to SWD/SWF RF Test Probe

SMA to SWD/SWF RF Test Probe：PCB & Board-Level RF Testing Solution

Adapter Series 1 & 2: SMA to SWD/SWF
Adapter Gender: Female
Body Materials and Plating: Brass Nickel & Gold Plated
Frequency Range (From DC): 6GHz
Impedance: 50 Ohm
VSWR: ≤1.6:1 (DC 0~3GHz), ≤2.0:1 (DC 3~6GHz)
Insertion Loss: ≤0.6dB (DC 0~3GHz), ≤1.5dB (DC 3~6GHz)
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >500 V
Probe Durability: ≥ 20000 cycles
Mating Cycles: SMA ≥ 1000 cycles
Operating Temperature: -45°C ~ +85°C
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

RF Interface Solution Engineered for Demanding Applications

Our SMA to SWD/SWF RF Test Probe serves as a precision bridge between standard test equipment and specialized switch connectors. Delivering exceptional performance across a DC to 6GHz frequency range with reliable 50 Ohm impedance matching, this probe ensures superior signal integrity for RF switching control, board-level validation, and module testing applications.

Critical Role in Automated Testing & R&D Validation

The versatility of this probe makes it an ideal choice for multiple testing scenarios, with standout performance in:

RF signal routing and switching in Automated Test Equipment (ATE) systems.
Control and signal transmission for RF switch matrices, enhancing test system flexibility.
Board-level signal validation during R&D phases for military, aerospace, and communication equipment.
Functional testing in production line and quality inspection processes for SWD/SWF interface specific devices.

Beyond the Product: Unmatched Service & Collaboration Value

We understand that true advantage lies not just in the product, but in the support behind it. That’s why we deliver decisive partnership benefits:

Frictionless Startup Support: We believe innovation shouldn’t be constrained by order quantity. Therefore, our minimum order quantity is just 1 piece. This policy fully applies to custom requirements – custom products also start at 1 piece, and we genuinely welcome orders from global customers.
Seamless Global Cooperation: Our optimized supply chain and logistics network ensure timely delivery and professional support worldwide, helping you accelerate project progress and control costs effectively.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMA to SWD/SWF RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	SMA
	Adapter Gender 1	Female
	Adapter Angle 1	Straight
	Adapter Mount Method 1	None
	Body Materials and Plating 1	Brass Nickel Plated
	Adapter Series 2	SWD_SWF
	Adapter Gender 2	None
	Adapter Angle 2	Straight
	Adapter Mount Method 2	2 Hole Flange
	Body Materials and Plating 2	Brass Gold Plated
Electric Specifications	Impedance	50ohm
	Frequency Range (From DC)	6GHz
	VSWR	≤1.6:1 (DC 0~3GHz)
	Insertion Loss	≤0.6dB(dc 0~3GHZ)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMA≥ 1000 cycles
	Probe Durability	≥ 20000 cycles
	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +85°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107, Cond. B, 40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. What is your minimum order quantity for the SMA to SWD/SWF RF Test Probe?
We maintain a 1-piece minimum order quantity for both standard and custom SMA to SWD/SWF RF Test Probes, serving clients globally with no minimum order value requirements.

2. What frequency range does the SMA to SWD/SWF RF Test Probe support?
The SMA to SWD/SWF Test Probe operates from DC to 6GHz, suitable for most PCB and board-level RF testing applications.

3. What are the primary applications for the SMA to SWD/SWF RF Test Probe?
This SMA to SWD/SWF Test Probe is designed for PCB RF testing, board-level component validation, circuit board diagnostics, and electronic manufacturing.

4. How durable is the SMA to SWD/SWF RF Test Probe?
The SMA to SWD/SWF Test Probe guarantees ≥1000 mating cycles for SMA connections and ≥20,000 probe durability cycles.

5. What makes the SMA to SWD/SWF RF Test Probe suitable for PCB testing?
The SMA to SWD/SWF RF Test Probe features SWD/SWF compatibility for direct board connections and reliable performance for circuit testing.

6. What environmental standards does the SMA to SWD/SWF RF Test Probe meet?
Our SMA to SWD/SWF RF Test Probe complies with MIL-STD-202 environmental specifications and RoHS requirements.

7. What is the VSWR performance of the SMA to SWD/SWF Test Probe?
The SMA to SWD/SWF Test Probe maintains VSWR ≤1.6:1 (DC-3GHz) and ≤2.0:1 (3-6GHz) for reliable testing.

8. Can the SMA to SWD/SWF RF Test Probe withstand manufacturing environment conditions?
Yes, the SMA to SWD/SWF RF Test Probe operates from -45°C to +85°C and meets industrial environmental standards.

9. Do you provide technical support for SMA to SWD/SWF RF Test Probe applications?
Yes, we offer comprehensive technical support for all SMA to SWD/SWF RF Test Probe applications and integration needs.

10. What is the delivery timeline for custom SMA to SWD/SWF RF Test Probes?
Custom SMA to SWD/SWF RF Test Probes typically ship within 2-3 weeks, including single-piece custom orders for specialized PCB testing requirements.
