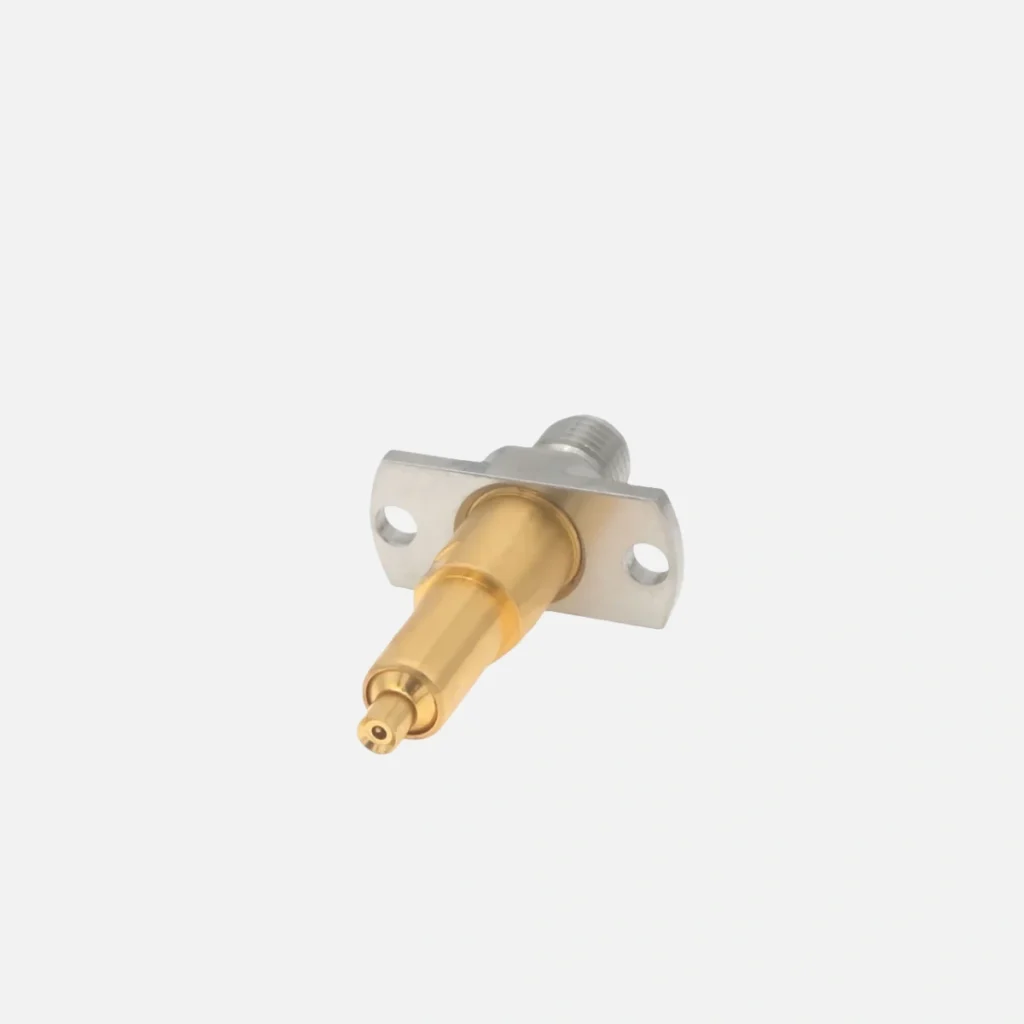

SMA Female to SWG RF Test Probe connected to a PCB for validation testing
LOGO8
LOGO7
LOGO6
LOGO5
LOGO4
LOGO3
LOGO2

SMA to SWG RF Test Probe with Precision Interface for 6GHz Applications

Adapter Series 1 & 2: SMA to SWG
Adapter Gender: Female to Male
Body Materials and Plating: Stainless Steel Passivated & Be-Cu Gold Plated
Frequency Range (From DC): 6GHz
VSWR: ≤1.3:1 (DC 0~3GHz), ≤1.4:1 (DC 3~6GHz)
Impedance: 50 Ohm
Insertion Loss: ≤0.4dB (DC 0~3GHz), ≤1.4dB (DC 3~6GHz)
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >500 V
Probe Durability: ≥ 10000 cycles
Mating Cycles: SMA ≥ 500 cycles
Operating Temperature: -45°C ~ +125°C
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data
PDF Download

REECUFUTURE SMA to SWG RF Test Probes Product Introduction

Overview

REECUFUTURE SMA to SWG RF Test Probes deliver uncompromising performance for high-frequency testing applications. Designed with a robust SMA Female to SWG interface, these probes maintain excellent signal integrity from DC to 6 GHz.

Features

  • No Minimum Order Barrier: We accept custom orders with a 1-piece MOQ worldwide, supporting both startups and established companies.
  • Superior RF Performance: 50Ω impedance with VSWR ≤1.30 ensures accurate signal transmission with minimal insertion loss.
  • Exceptional Durability: Gold-plated contacts withstand over 10,000 mating cycles in automated test environments.
  • Precision Engineering: SMA-F to SWG interface guarantees reliable connections to both equipment and PCB test points.

Applications

REECUFUTURE SMA to SWG RF Test Probes are ideal for:

  • 5G Device Testing
  • Wireless Module Validation
  • Automotive Electronics
  • IoT Communication Systems
  • PCB Circuit Testing

Production Process

Product Detail Sheet

CategoryParameterDescription
Product InformationProduct NameSMA to SWG RF Test Probes
BrandREECUFUTURE
Minimum Order Quantity1 Piece
PackagingBoxed
OriginShanghai, China
ConfigurationAdapter Series 1SMA
Adapter Gender 1Female
Adapter Angle 1Straight
Adapter Mount Method 1None
Body Materials and Plating 1Stainless Steel Passivated
Adapter Series 2SWG
Adapter Gender 2Male
Adapter Angle 2Straight
Adapter Mount Method 22 Hole Flange
Body Materials and Plating 2Be-Cu, Gold Plated
Electric SpecificationsImpedance50ohm
Frequency Range (From DC)6GHz
VSWR≤1.3:1 (DC 0~3GHz)
≤1.4:1 (DC 3~6GHz)
Insertion Loss≤0.4dB (DC 0~3GHz)
≤1.4dB (DC 3~6GHz)
Voltage Rating335 V(rms)
Dielectric Withstanding Voltage>500 V
Insulation Resistance≥500 Mohm
Mechanical CharacteristicsMating CyclesSMA≥500 cycles
Probe Durability≥10000 cycles
Mating Torque5~7 in – lbs
Environmental Characteristics
(RoHS Compliant)		Temperature Rating-45°C ~ +125°C
Corrosion (Salt Spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D, 20 Gs
ShockMIL-STD-202, Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. What is the minimum order quantity (MOQ) for the SMA to SWG RF Test Probes?
We support flexible purchasing with a minimum order quantity of just 1 piece. Importantly, our custom order MOQ is also 1 piece, and we accept orders worldwide, enabling both prototyping and small-batch production for global customers.

2. What is the frequency range of these SMA to SWG RF Test Probes?
Our coaxial RF test probes are designed for high-frequency applications, offering a broad operating range from DC to 6 GHz.

3. What connectors are available on the probe?
The probe features a standard interface of SMA Female on one end and an SWG (Spring-Loaded) tip on the other, ideal for connecting test equipment to PCB test points.

4. What is the typical VSWR performance?
These probes provide excellent signal integrity with a Voltage Standing Wave Ratio (VSWR) of ≤1.30 across the entire frequency range.

5. How many mating cycles can the probe withstand?
Built for durability in automated test environments, the probe offers a mechanical life of ≥10,000 cycles.

6. What is the characteristic impedance?
The probes are standardized at 50 Ohms, matching the impedance of most RF systems and components to ensure accurate measurements.

7. Are these probes suitable for 5G device testing?
Yes, with their 6 GHz bandwidth and stable performance, they are perfectly suited for validating 5G devices, RF modules, and other wireless communication products.

8. What is the operating temperature range?
They are rated for operation in temperatures from -45°C to +125°C, ensuring reliability in various environmental conditions.

9. What materials are used in the construction?
Key components utilize high-performance materials, including a gold-plated brass shell and a gold-plated stainless steel spring, for low resistance and long-term reliability.

10. Is the product in stock and how is it packaged?
The product is typically in stock and is shipped in protective box packaging to guarantee arrival in perfect condition.
