SMA to SWG Test Probe

SMA to SWG Test Probe：Precision RF & Microwave Testing Solution

Adapter Series 1 & 2: SMA to SWG
Adapter Gender: Female to Male
Body Materials and Plating: Stainless Steel Passivated & Be-Cu Gold Plated
Frequency Range (From DC): 6GHz
VSWR: ≤1.3:1 (DC 0~3GHz), ≤1.4:1 (DC 3~6GHz)
Impedance: 50 Ohm
Insertion Loss: ≤0.4dB (DC 0~3GHz), ≤1.4dB (DC 3~6GHz)
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >500 V
Probe Durability: ≥ 10000 cycles
Mating Cycles: SMA ≥ 500 cycles
Operating Temperature: -45°C ~ +125°C
Mating Torque: 5~7 in – lbs
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

REECUFUTURE SMA to SWG Test Probe: High-Performance RF Testing Solution

Product Overview

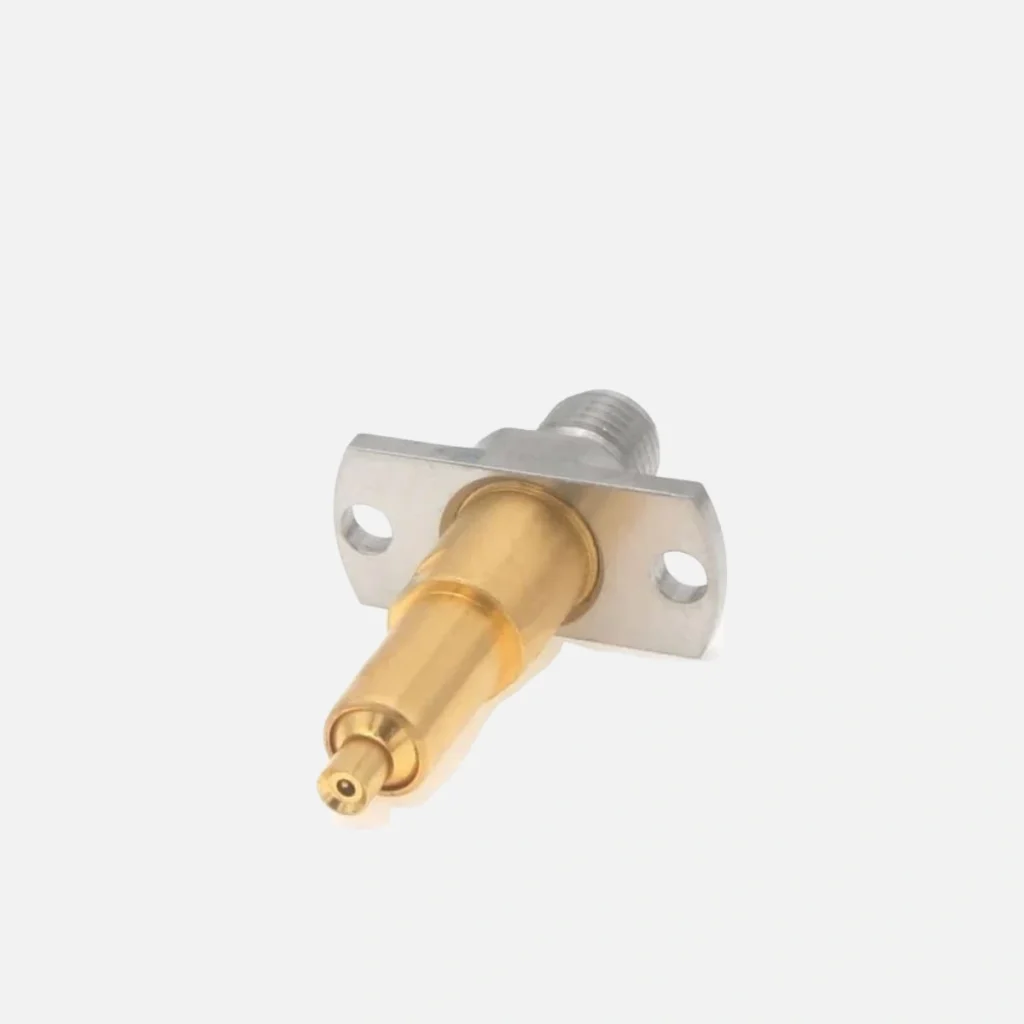

The SMA to SWG Test Probe delivers exceptional precision for demanding RF and microwave testing applications. Featuring a robust SMA female to SWG male configuration with 2-hole flange mounting, this probe ensures reliable connectivity and outstanding signal integrity. With stainless steel passivated and beryllium copper gold-plated construction, the SMA to SWG Test Probe maintains superior electrical performance while providing excellent mechanical durability for extended testing cycles up to 6GHz.

Primary Applications
This SMA to SWG Test Probe is engineered for precision RF testing, microwave component validation, communication systems, and laboratory measurement applications. It serves telecommunications companies, research institutions, and electronics manufacturers worldwide, providing accurate performance validation for critical systems operating across the 6GHz spectrum with exceptional VSWR and insertion loss characteristics.

Key Advantages
Our SMA to SWG Test Probe offers remarkable benefits: Most importantly, we provide minimum order quantity of just 1 piece, enabling access to high-performance testing solutions for projects of all sizes. Additionally, customized probe configurations also start from 1 piece with global order acceptance, offering unparalleled flexibility for specialized testing requirements. The probe’s excellent VSWR performance (≤1.3:1 up to 3GHz) and low insertion loss ensure accurate measurements, while the military-grade construction guarantees reliability in demanding environments.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMA to SWG Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Gender 1	Female
	Adapter Angle 1	Straight
	Adapter Mount Method 1	2 Hole Flange
	Body Materials and Plating 1	Stainless Steel Passivated
	Adapter Series 2	SWG
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Be-Cu, Gold Plated
Electric Specifications	Impedance	50ohm
	Frequency Range (From DC)	6GHz
	VSWR	≤1.3:1 (DC 0~3GHz) ≤1.4:1 (DC 3~6GHz)
	Insertion Loss	≤0.4dB (DC 0~3GHz) ≤1.4dB (DC 3~6GHz)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMA ≥ 500 cycles
	Probe Durability	≥ 10000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107, Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
