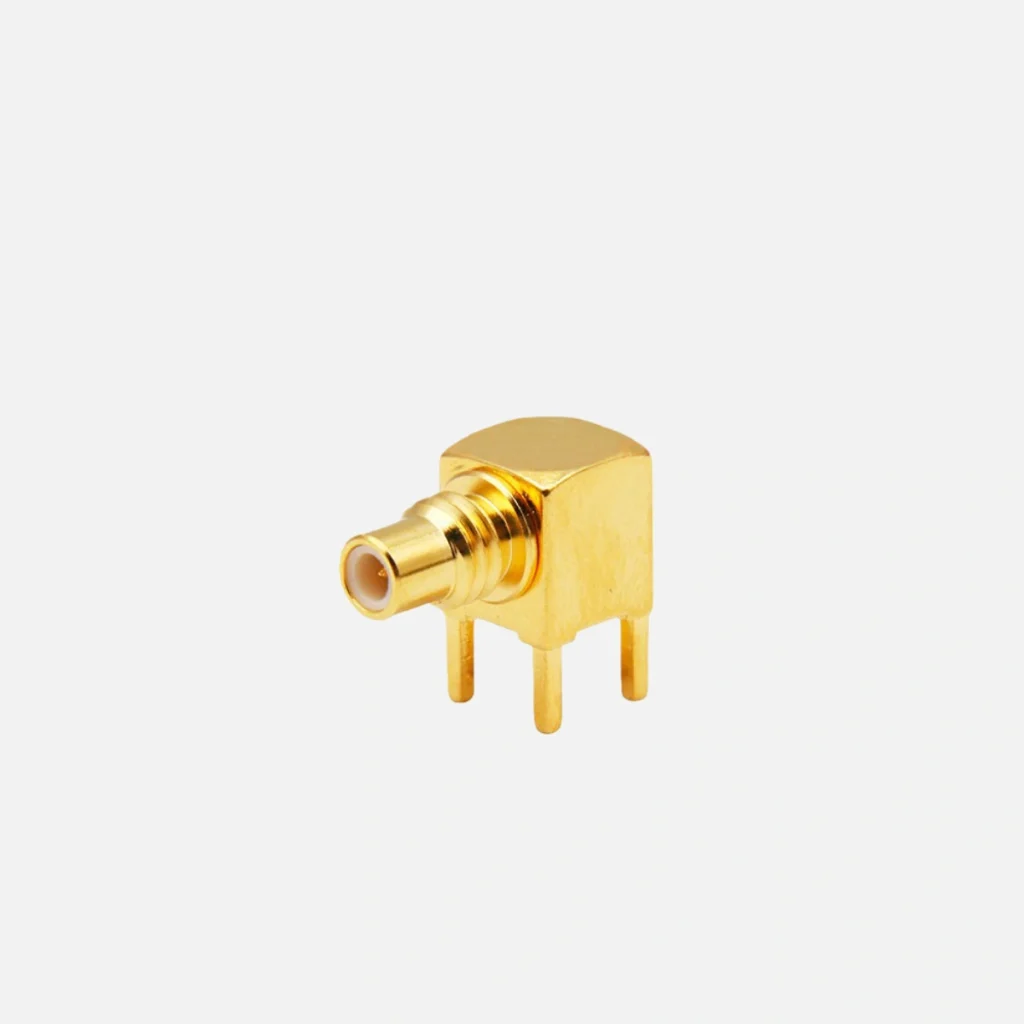

SMC Right-Angle PCB Connector

SMC Right-Angle PCB Connector – Thru-Hole Mount, 6GHz, 50 Ohm

Connector Series: SMC
Connector Gender: Male
Connector Angle: Right Angle
Mounting Type: Thru-Hole PCB Mount
Mounting Hole Size: 0.200″ x 0.051″
Impedance: 50 ohm
Frequency Range: DC to 6 GHz
VSWR: ≤1.35:1 (DC 0~6GHz)
Insertion Loss: 0.05 x√(f_GHz)
Voltage Rating: 150 V(rms)
Mating Cycles: ≥500 cycles
Center Contact Material: Brass, gold plated
Body Material: Brass, gold plated
Operating Temperature: -45°C to +125°C
MOQ & Customization: 1 Piece (Standard & Custom Designs, Global Orders Accepted)

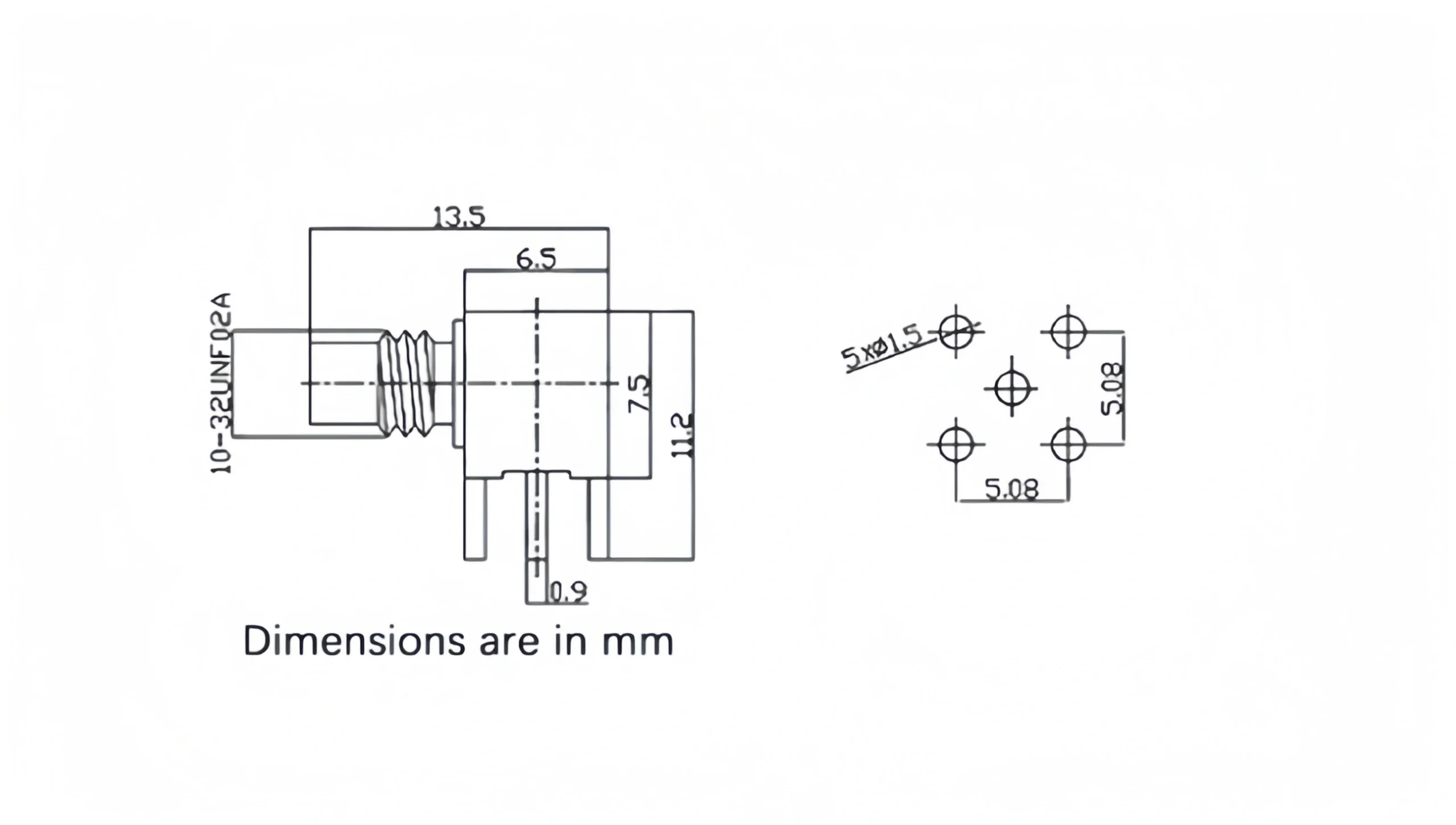

CAD data

PDF Download

SMC Right-Angle PCB Connector: Space-Saving RF Solution with Unmatched Flexibility

Designed for modern high-density PCB layouts, our SMC Right-Angle PCB Connector delivers reliable RF performance while maximizing space utilization. This compact connector solution combines excellent electrical characteristics with unprecedented procurement flexibility to support your projects from prototype to production.

Revolutionary Ordering Flexibility

We’ve transformed traditional RF connector procurement to meet the demands of today’s fast-paced development cycles.

True Single-Piece Ordering: Our Minimum Order Quantity is just 1 piece – order exactly what you need for prototyping, testing, or small batch production without inventory overhead.
Full Customization Support: Custom designs enjoy the same 1-piece MOQ benefit – modify mechanical specifications, materials, or performance parameters starting from a single unit.
Global Service Network: We seamlessly handle international orders from any location, ensuring consistent service quality and technical support worldwide.

Optimized RF Performance in Compact Design

Engineered to deliver reliable performance in space-constrained applications while maintaining signal integrity.

Reliable Frequency Coverage: Operates from DC to 6GHz, supporting wireless communications, test equipment, and industrial control systems.
Excellent Signal Integrity: Maintains 50-ohm impedance with VSWR ≤1.35:1 across the operating band, ensuring clean signal transmission.
Space-Efficient Configuration: The 90-degree design minimizes PCB footprint while providing accessible interface points for cable connections.

Robust Mechanical Construction

Built to withstand demanding applications and ensure long-term reliability in challenging environments.

Premium Material Selection: Gold-plated brass contacts and body ensure low resistance and excellent corrosion resistance, while PTFE insulators maintain electrical stability.
Secure PCB Mounting: Thru-hole design with .200″ x .051″ mounting pattern provides strong mechanical attachment to PCBs.
Proven Durability: Rated for ≥500 mating cycles, guaranteeing consistent performance throughout the product lifecycle.

Comprehensive Quality Assurance

Rigorous Environmental Testing: Meets MIL-STD-202 standards for vibration, shock, thermal shock, and salt spray corrosion resistance.
Wide Temperature Operation: Functions reliably from -45°C to +125°C, suitable for commercial, industrial, and outdoor applications.
Environmental Compliance: Fully RoHS compliant, meeting global environmental standards and regulatory requirements.

Transform your compact RF designs with our space-efficient SMC right-angle connector. Experience the advantage of single-piece sourcing with reliable RF performance. Contact us today for standard or custom SMC connector solutions to optimize your system integration.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMC Right-Angle PCB Connector
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Connector Series	SMC
	Connector Gender	Male
	Connector Angle	Right Angle
	Connector Mount Method	PCB Mount
	Attachment Method	Solder
	Interface Type	Thru Hole
Material	Centre Contact	Brass, gold plated
	Body	Brass, gold plated
	Insulators	PTFE
Electrical Specifications	Impedance	50 ohm
	Frequency Range(From DC)	6GHz
	VSWR	≤1.35:1 (DC 0~6GHz)
	Insertion Loss	0.05 xSqt.(f_Ghz)
	Voltage Rating	150 V(rms)
	Dielectric Withstanding Voltage	500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	≥500 cycles
Mechanical Characteristics	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. What is your minimum order quantity and does it apply to custom designs?
Our MOQ is just 1 piece, and this applies to both standard and custom designs. We accept global orders for prototyping and production requirements.

2. What is the frequency range of this SMC connector?
This connector supports frequencies from DC up to 6GHz, suitable for various RF and wireless applications.

3. What are the mounting hole dimensions required?
This connector requires .200 inch x .051 inch mounting holes for proper PCB installation.

4. What is the connector’s impedance rating?
This is a standard 50 ohm impedance connector, ensuring excellent signal integrity and impedance matching.

5. What materials are used in the connector construction?
It features gold-plated brass contacts and body with PTFE insulators for optimal RF performance and durability.

6. What is the VSWR performance specification?
VSWR is ≤1.35:1 across the full DC to 6GHz frequency range, ensuring minimal signal reflection.

7. How many mating cycles is the connector rated for?
It’s rated for ≥500 mating cycles, ensuring long-term reliability in frequent connection applications.

8. What is the operating temperature range?
The connector operates from -45°C to +125°C, suitable for various environmental conditions and applications.

9. What is the voltage rating of this connector?
The voltage rating is 150 V(rms) with 500 V dielectric withstanding voltage for safe operation.

10. Is this connector RoHS compliant?
Yes, it’s fully RoHS compliant, meeting international environmental standards and regulations.
