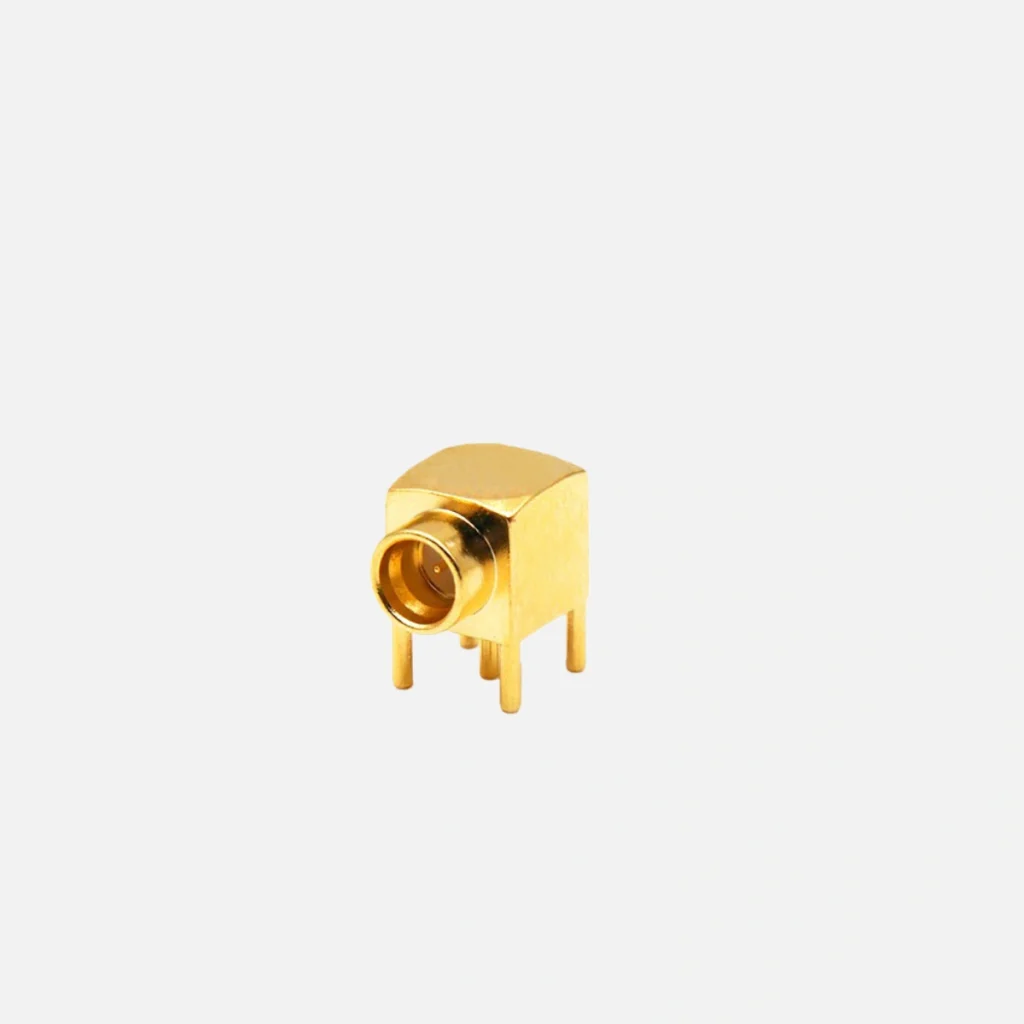

SMP/GPO Right-Angle PCB Connector

SMP/GPO Right-Angle PCB Connector – Limited Detent, Thru-Hole Mount, 18GHz

Connector Series: SMP
Connector Gender: Male
Connector Angle: Right Angle
Interface Type: Thru Hole
Impedance: 50 ohm
Frequency Range: DC to 18 GHz
VSWR: ≤1.25:1 (DC 0~18GHz)
Insertion Loss: 0.05 x√(f_GHz)
Voltage Rating: 150 V(rms)
Mating Cycles: ≥500 cycles
Center Contact Material: Brass, gold plated
Body Material: Brass, gold plated
Operating Temperature: -45°C to +125°C
RoHS Compliance: Yes
MOQ & Customization: 1 Piece (Standard & Custom Designs, Global Orders Accepted)

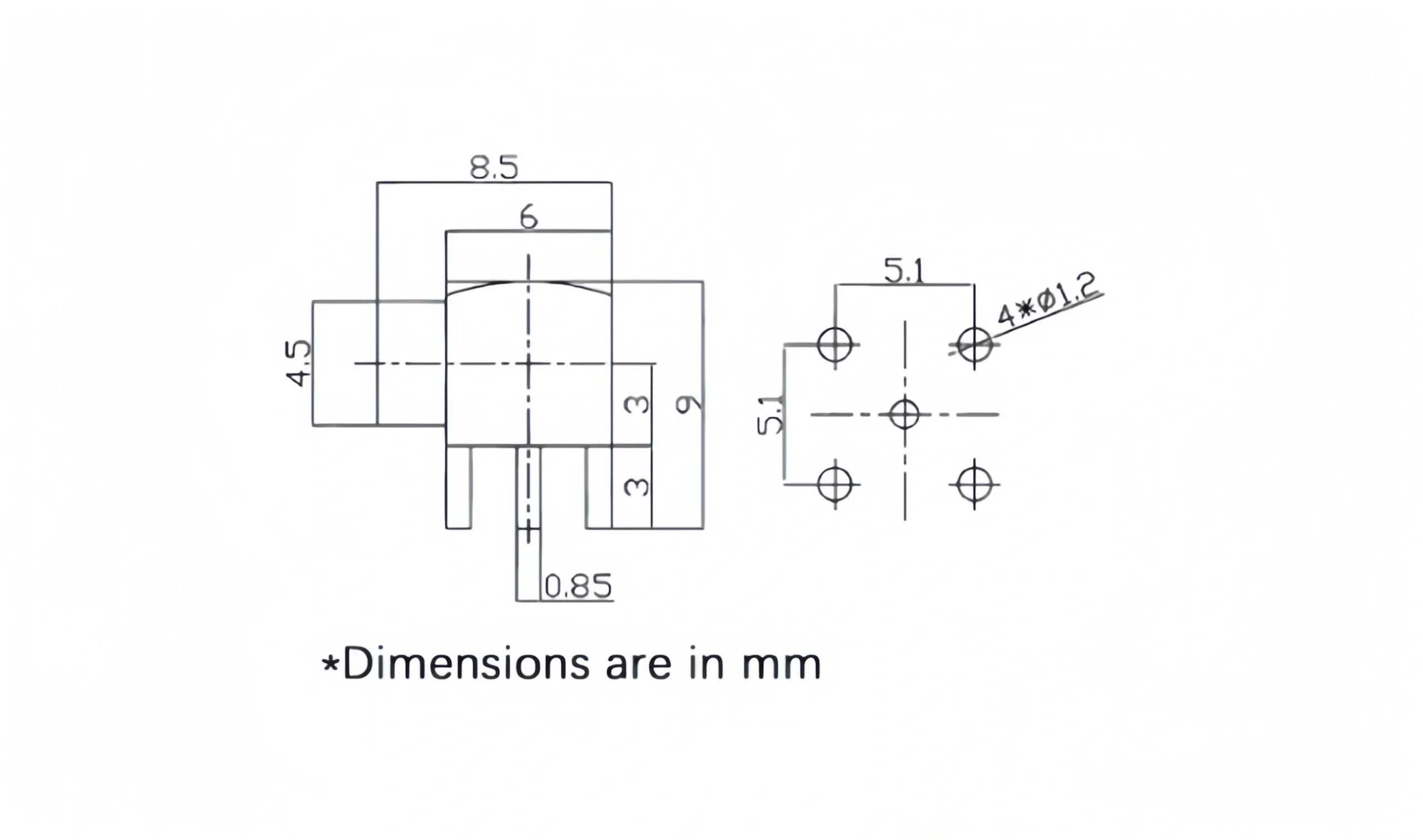

CAD data

PDF Download

SMP/GPO Right-Angle PCB Connector: Optimized for Space-Constrained RF Designs

In modern RF system design where board space is at a premium, our SMP/GPO Right-Angle PCB Connector delivers both space-saving benefits and uncompromised performance. Engineered for high-density applications, this connector provides the perfect solution for compact RF systems while offering unprecedented procurement flexibility.

Unmatched Sourcing Flexibility: Order with Confidence

We break down traditional procurement barriers to support your innovation from concept to production.

True Single-Piece Ordering: Our Minimum Order Quantity is just 1 piece – order exactly what you need for prototyping, testing, or small batch production without inventory concerns.
Full Customization Available: Custom designs enjoy the same 1-piece MOQ benefit – modify mounting configurations, materials, or electrical specs starting from a single unit.
Worldwide Order Acceptance: We seamlessly handle global orders from any location, ensuring consistent service quality and technical support worldwide.

Superior RF Performance in Compact Form

Designed to excel in space-constrained applications without sacrificing electrical performance.

High-Frequency Capability: Operates reliably from DC to 18GHz, supporting 5G infrastructure, test equipment, and wireless communication systems.
Excellent Signal Integrity: Maintains 50-ohm impedance with VSWR ≤1.25:1 across the entire frequency range, ensuring minimal signal reflection.
Space-Efficient Right-Angle Design: The 90-degree configuration saves valuable PCB real estate while providing easy access for cable connections.

Robust Mechanical Construction

Built to withstand the demands of rigorous applications and multiple mating cycles.

Premium Contact Materials: Gold-plated brass contacts and body ensure low resistance and corrosion resistance, while PTFE insulators maintain stable performance.
Secure Thru-Hole Mounting: Provides strong mechanical attachment to PCBs, capable of withstanding vibration and mechanical stress in demanding environments.
Proven Durability: Rated for ≥500 mating cycles, guaranteeing long-term reliability and consistent performance.

Rigorous Quality Assurance

Comprehensive Environmental Testing: Me MIL-STD-202 standards for vibration, shock, thermal shock, and salt spray corrosion resistance.
Wide Temperature Operation: Functions reliably from -45°C to +125°C, suitable for both commercial and industrial applications.
Environmental Compliance: Fully RoHS compliant, meeting global environmental standards.

Stop compromising between space constraints and RF performance. Experience the advantage of single-piece sourcing with our space-efficient right-angle connector. Request your quote for standard or custom SMP/GPO solutions today and optimize your RF system design.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMP/GPO Right-Angle PCB Connector
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Connector Series	SMP
	Connector Gender	Male
	Connector Angle	Right Angle
	Connector Mount Method	None
	Attachment Method	Solder
	Interface Type	Thru Hole
Material	Centre Contact	Brass, gold plated
	Body	Brass, gold plated
	Insulators	PTFE
Electrical Specifications	Impedance	50 ohm
	Frequency Range(From DC)	18GHZ
	VSWR	≤1.25:1 (DC 0~18GHz)
	Insertion Loss	0.05 xSqt.(f_Ghz)
	Voltage Rating	150 V(rms)
	Dielectric Withstanding Voltage	500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	≥500 cycles
Mechanical Characteristics	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. What is your minimum order quantity and does it apply to custom designs?
Our MOQ is just 1 piece, and this applies to both standard and custom designs. We accept global orders for prototyping and production needs.

2. What is the frequency range of this right-angle SMP/GPO connector?
This connector supports frequencies from DC up to 18GHz, suitable for various RF applications.

3. What are the mounting hole dimensions required?
This connector requires .200 inch x .047 inch mounting holes for proper PCB installation.

4. What does “limited detent” mean in this connector?
Limited detent provides secure coupling with controlled rotational movement between mated pairs.

5. What is the connector’s impedance?
This is a standard 50 ohm impedance connector, compatible with most RF systems.

6. What materials are used in construction?
It features gold-plated brass contacts and body with PTFE insulators for optimal performance.

7. What is the VSWR performance?
VSWR is ≤1.25:1 across the full DC to 18GHz frequency range.

8. How many mating cycles is it rated for?
It’s rated for ≥500 mating cycles, ensuring long-term reliability.

9. What is the operating temperature range?
The connector operates from -45°C to +125°C, suitable for various environments.

10. Is this connector RoHS compliant?
Yes, it’s fully RoHS compliant, meeting international environmental standards.
