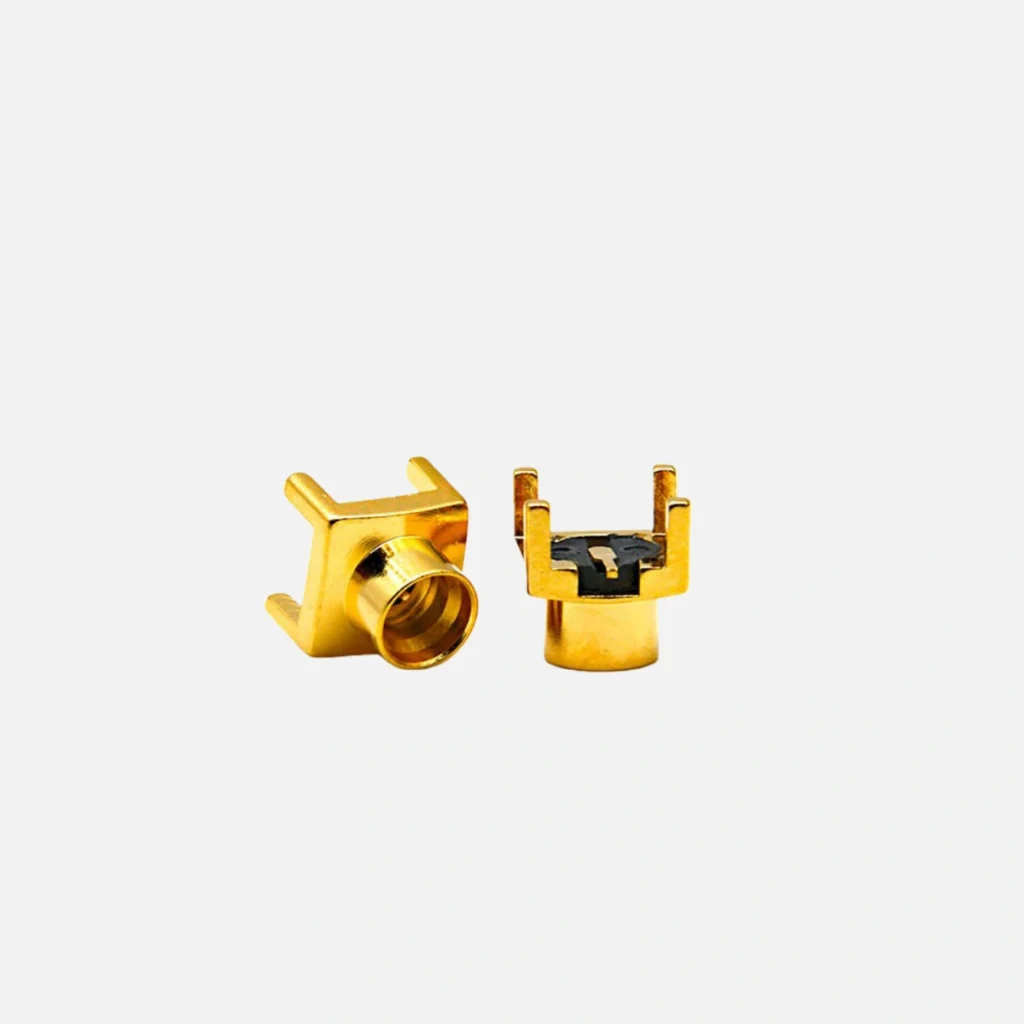

SMP/GPO Thru-Hole PCB Connector

SMP/GPO Thru-Hole PCB Connector – Limited Detent, 18GHz, 50 Ohm

Connector Series: SMP
Connector Gender: Male
Connector Angle: Straight
Interface Type: Thru Hole
Impedance: 50 ohm
Frequency Range: DC to 18 GHz
VSWR: ≤1.25:1 (DC 0~18GHz)
Insertion Loss: 0.05 x√(f_GHz)
Voltage Rating: 150 V(rms)
Mating Cycles: ≥500 cycles
Center Contact Material: Brass, gold plated
Insulator Material: PTFE
Operating Temperature: -45°C to +125°C
RoHS Compliance: Yes
MOQ & Customization: 1 Piece (Standard & Custom Designs, Global Orders Accepted)

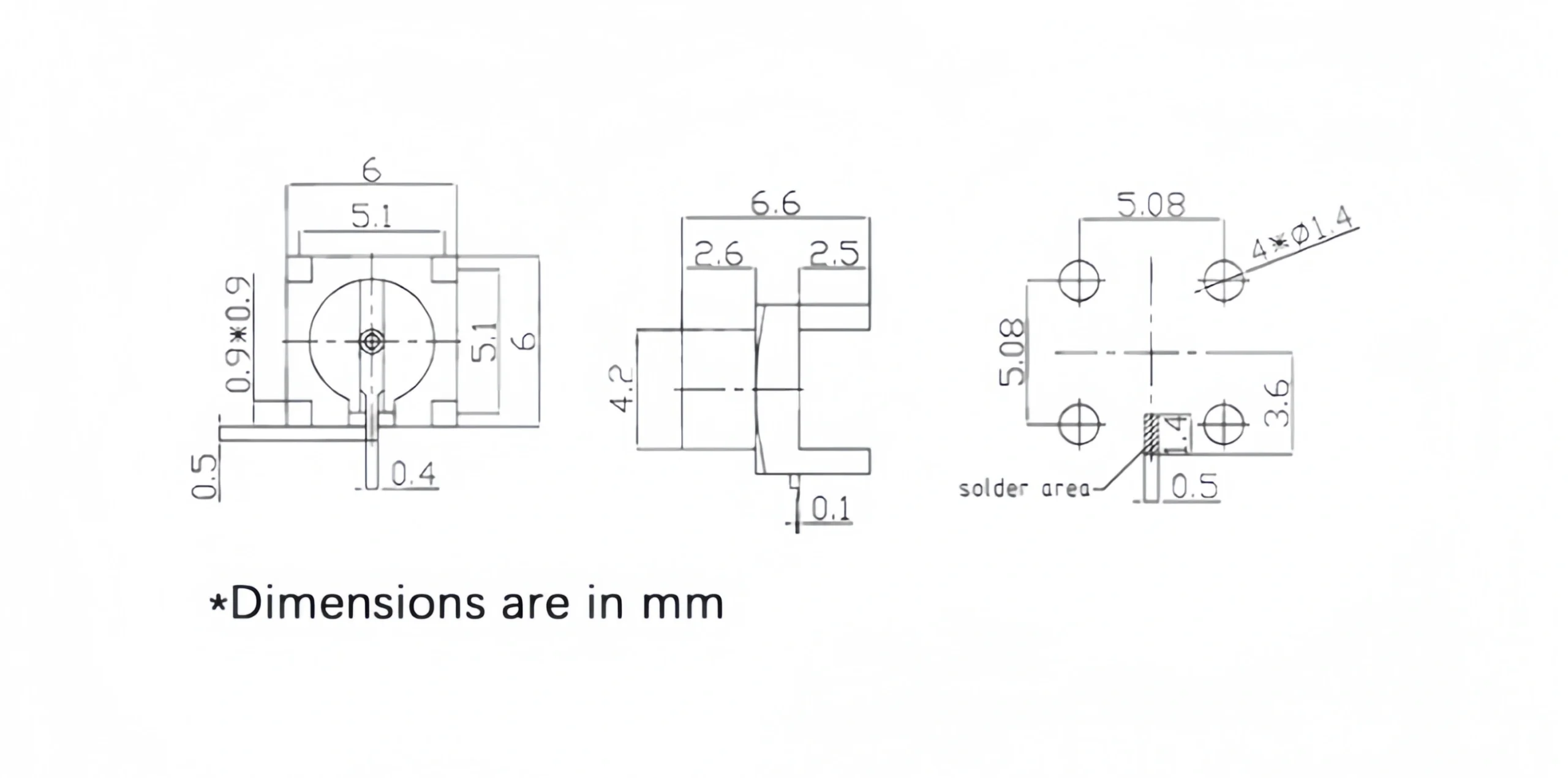

CAD data

PDF Download

SMP/GPO Thru-Hole PCB Connector: High-Frequency Performance Meets Unmatched Order Flexibility

In today’s rapidly evolving RF and microwave industry, having a reliable component supplier that can match your project’s pace and scale is crucial. Our SMP/GPO Thru-Hole PCB Connector delivers not only superior high-frequency performance but also unprecedented procurement flexibility, making it the ideal choice for R&D labs, pilot projects, and low-to-medium volume production worldwide.

Core Sourcing Advantage: Order On-Demand with Ultimate Flexibility

We have completely redefined the RF connector supply model by eliminating all minimum order quantity barriers.

Ultimate Flexibility: We proudly offer a Minimum Order Quantity (MOQ) of just 1 piece. This allows you to procure exactly the quantity needed for prototyping, testing, or small-batch production, eliminating inventory waste and upfront cost pressure.
Customization Without Limits: Crucially, this 1-piece MOQ applies fully to custom-designed connectors. Whether you need minor modifications to mounting hole patterns, specific plating requirements, or unique electrical characteristics, we are ready to collaborate on your custom project starting from a single unit.
Global Service, Local Support: We accept and efficiently process orders from around the world, ensuring you have access to our flexible, high-performance interconnect solutions regardless of your location.

Proven High-Frequency Performance

Beyond flexible supply, this connector delivers the robust performance required for demanding applications.

Broad Frequency Range: Reliable operation up to 18GHz, suitable for a wide range of modern wireless communications, telecommunications, and test & measurement equipment.
Precise Impedance Matching: Stable 50-ohm impedance ensures minimal signal reflection and maximum power transfer, maintaining signal integrity across your board.
Secure Limited Detent Coupling: The limited detent mechanism provides a secure, stable connection with controlled rotational freedom, offering a reliable alternative to full-detent or smooth bore versions.

Rugged Construction for Harsh Environments

Built for durability to ensure long-term reliability.

Premium Materials: Features gold-plated brass body and center contact for excellent conductivity and corrosion resistance, with PTFE insulators ensuring stable performance across a wide temperature range.
Robust Thru-Hole Design: The straight thru-hole configuration with .100 inch x .039 inch mounting footprint ensures a strong mechanical bond to your PCB, capable of withstanding significant stress and vibration.

Stop compromising between performance, flexibility, and cost. Request your quote for standard or custom SMP/GPO connectors today and experience the advantages of single-piece sourcing to accelerate your innovation.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMP/GPO Thru-Hole PCB Connector
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Connector Series	SMP
	Connector Gender	Male
	Connector Angle	Straight
	Connector Mount Method	None
	Attachment Method	Solder
	Interface Type	Thru Hole
Material	Centre Contact	Brass, gold plated
	Body	Brass, gold plated
	Insulators	PTFE
Electrical Specifications	Impedance	50 ohm
	Frequency Range(From DC)	18GHZ
	VSWR	≤1.25:1 (DC 0~18GHz)
	Insertion Loss	0.05 xSqt.(f_ Ghz)
	Voltage Rating	150 V(rms)
	Dielectric Withstanding Voltage	500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	≥ 500 cycles
Mechanical Characteristics	Mating Torque	5-7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
