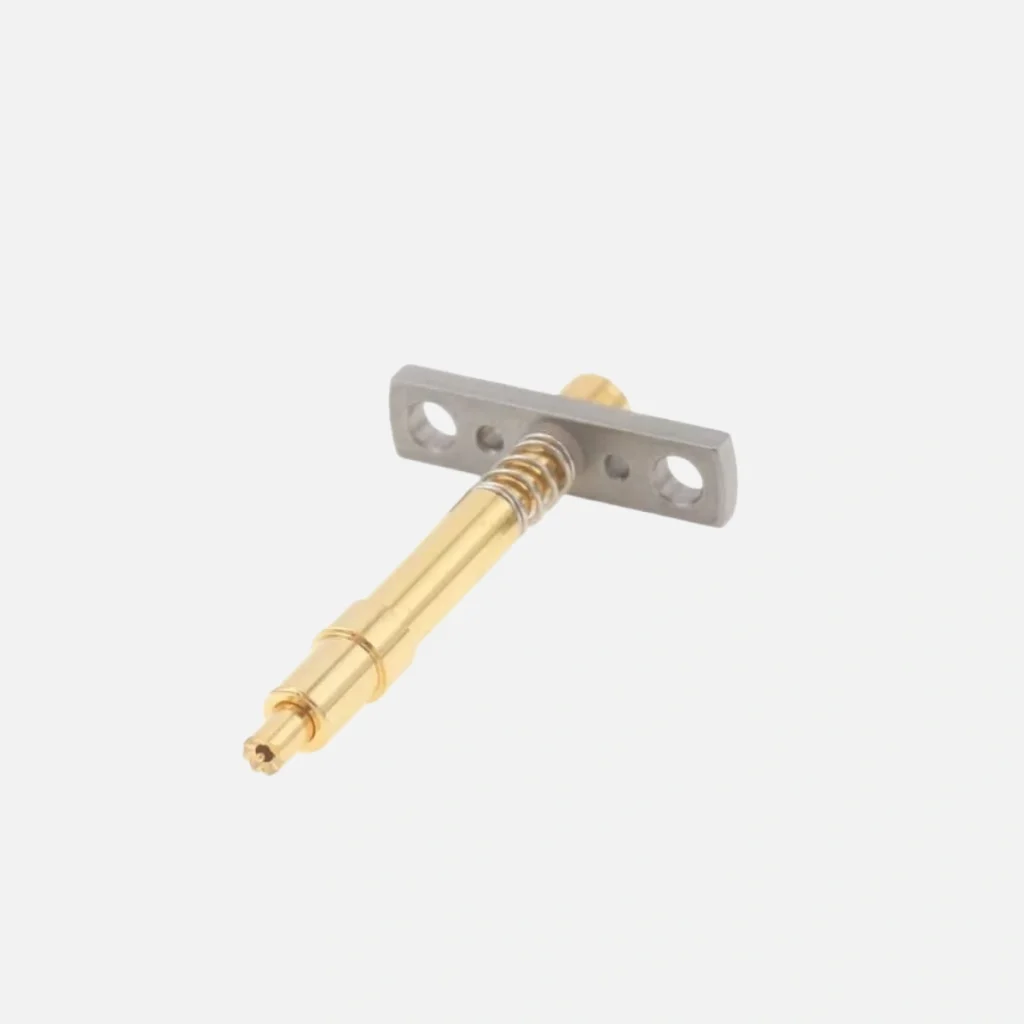

SMPM to Coaxial Pads PCB RF Probe 6GHz for Board-Level Testing

SMPM to Coaxial Pads PCB RF Probe: Precision Solution for Board-Level RF Testing

Adapter Series 1: SMPM
Adapter Gender 1: Male
Adapter Angle 1: Straight
Adapter Mount Method 1: 2 Hole Flange
Body Materials and Plating 1: Be-Cu, Gold Plated
Adapter Series 2: Coaxial Circular Pads
Impedance: 50 Ohm
Frequency Range (From DC): 6GHz
VSWR: ≤1.5:1 (DC 0~6GHz)
Insertion Loss: ≤0.6dB (DC 0~6GHz)
Mating Cycles: SMPM ≥ 500 cycles
Probe Durability: ≥ 10000 cycles
Operating Temperature: -45°C ~ +125°C
MOQ & Customization: 1 Piece

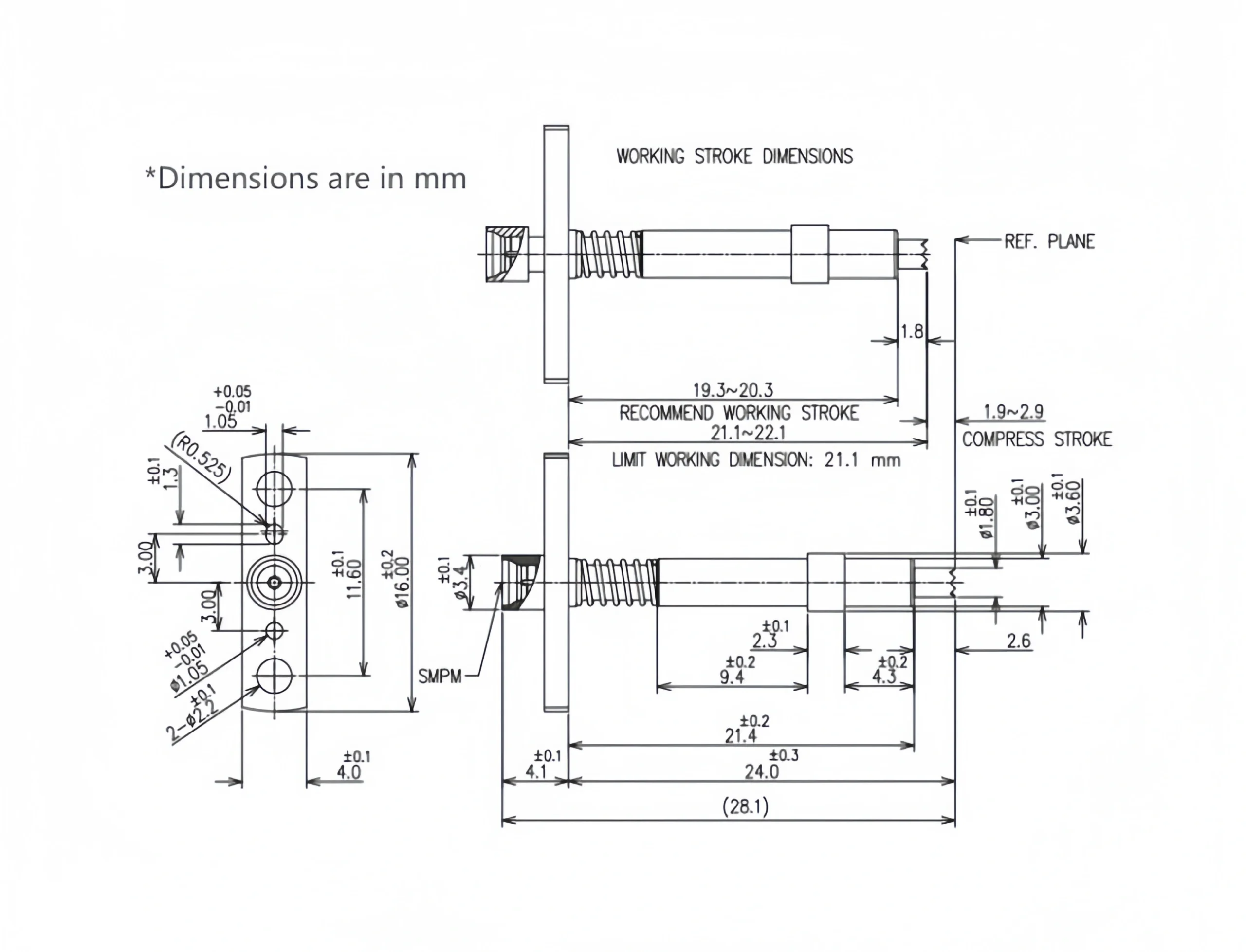

CAD data

PDF Download

REECUFUTURE SMPM to Coaxial Pads PCB RF Probe Product Introduction

Product Overview

REECUFUTURE SMPM to Coaxial Pads PCB RF Probe represents a breakthrough in board-level testing solutions, designed to provide seamless connectivity between SMPM interfaces and coaxial circular pads on PCBs. Operating from DC to 6GHz with stable 50-ohm impedance, this probe delivers exceptional signal integrity for RF circuit validation, prototype debugging, and production testing across wireless communications and high-frequency electronics.

Technical Excellence & Design Advantages

Precision RF Performance: Maintains VSWR ≤1.5:1 and insertion loss ≤0.6dB across the full frequency range, ensuring accurate measurements for sensitive RF applications
Robust Mechanical Construction: Combines gold-plated beryllium copper for optimal conductivity with passivated stainless steel for durability, supporting ≥10,000 testing cycles
Military-Grade Reliability: Certified to MIL-STD-202 standards for vibration, shock, thermal shock, and corrosion resistance, guaranteeing performance in harsh environments
Optimized Interface Design: Features SMPM male connector with 2-hole flange mounting on one end and coaxial circular pads on the other, providing secure connections for diverse testing scenarios
Extended Temperature Range: Operates reliably from -45°C to +125°C, suitable for both laboratory and industrial environments

Unmatched Ordering Flexibility & Global Support

We revolutionize RF probe accessibility by eliminating traditional minimum order requirements. Our MOQ is just 1 piece – a policy that applies equally to standard products and custom-designed solutions. Whether you need a single prototype for R&D or specialized probes for production, we begin at 1 piece and proudly serve clients worldwide without quantity restrictions.

Customization represents our core strength, not a premium service. From connector types and interface designs to specific performance parameters, we adapt to your exact requirements with the same 1-piece starting point. Our global logistics network ensures timely delivery and technical support across continents, making professional-grade RF testing solutions accessible to startups, research institutions, and enterprises alike.

Experience the REECUFUTURE advantage – where precision engineering meets unprecedented flexibility, all starting from a single piece with global custom order acceptance.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMPM to Coaxial Pads PCB RF Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	SMPM
	Adapter Gender 1	Male
	Adapter Angle 1	Straight
	Adapter Mount Method 1	2 Hole Flange
	Body Materials and Plating 1	Be-Cu, Gold Plated
	Adapter Series 2	Coaxial Circular Pads
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Stainless Steel Passivated
Electric Specifications	Impedance	50 Ohm
	Frequency Range (From DC)	6GHz
	VSWR	≤1.5:1 (DC 0~6GHz)
	Insertion Loss	≤0.6dB (DC 0~6GHz)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMPM ≥ 500 cycles
	Probe Durability	≥ 10000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107, Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

Q: What is your Minimum Order Quantity for custom PCB RF probes?
A: Our MOQ for both standard and custom PCB RF probes is 1 piece, and we welcome global orders for customized solutions.

Q: What is the frequency range of this SMPM to Coaxial Pads probe?
A: It operates from DC to 6 GHz, suitable for various board-level RF testing applications.

Q: What is the VSWR performance?
A: Excellent VSWR of ≤1.5:1 across the entire DC to 6 GHz range.

Q: How durable is this PCB probe?
A: With ≥10,000 cycles durability, it’s ideal for both R&D and production testing environments.

Q: What materials are used in construction?
A: Features beryllium copper with gold plating and stainless steel passivated components.

Q: Is this probe compliant with military standards?
A: Yes, tested against MIL-STD-202 for vibration, shock, and environmental reliability.

Q: Can this probe be used for high-frequency PCB testing?
A: Absolutely, the 6 GHz frequency range makes it suitable for most wireless applications.

Q: What is the insertion loss specification?
A: Insertion loss is ≤0.6dB across the DC to 6 GHz frequency range.

Q: What mounting options are available?
A: SMPM end features 2-hole flange mounting while coaxial pads end is for PCB soldering.

Q: Is this product RoHS compliant?
A: Yes, fully RoHS compliant meeting international environmental standards.
