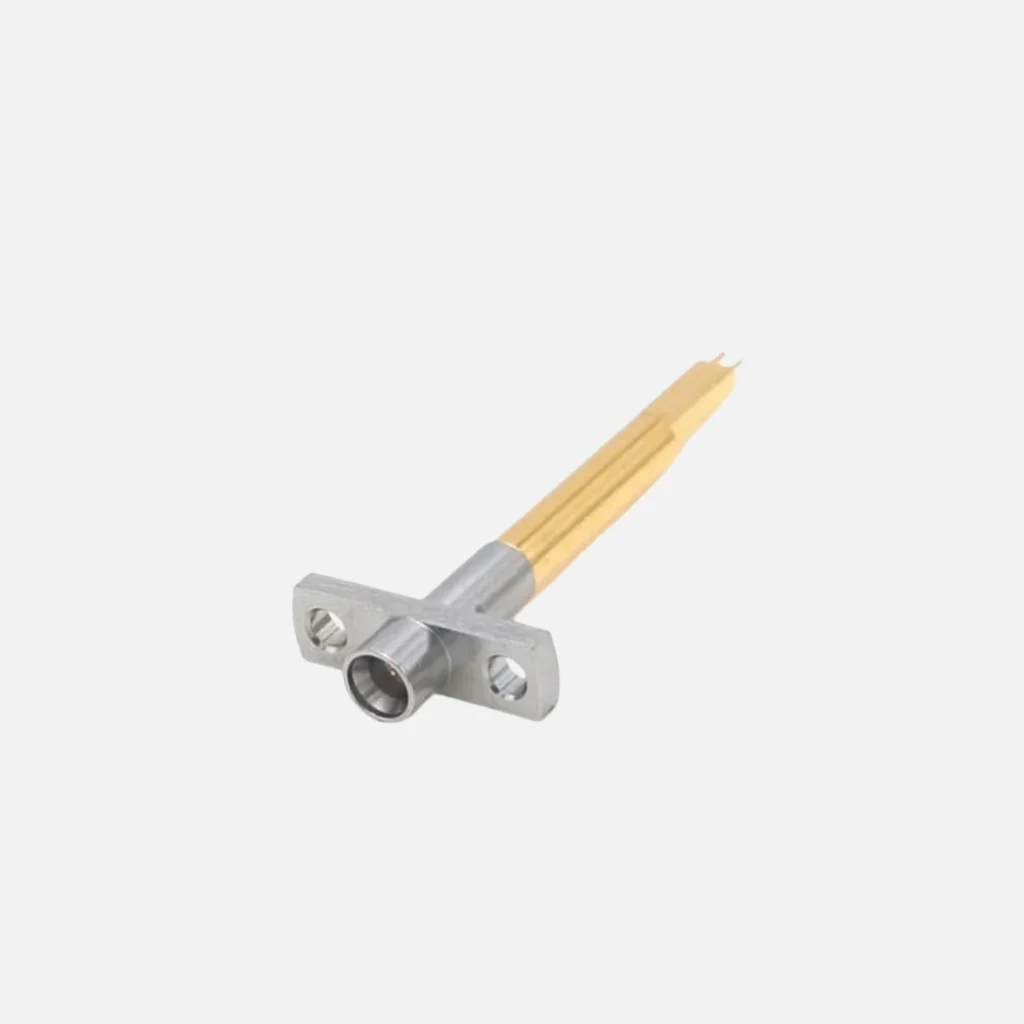

SMPM to SG PCB RF Test Probe

SMPM to SG PCB RF Test Probe：8GHz, 1.0mm Pitch, 10,000+ Cycles

Adapter Series 1 & 2: SMPM to SG PCB Pads
Adapter Gender: Male
Body Materials and Plating: Be-Cu Gold Plated & Stainless Steel Passivated
Frequency Range (From DC): 8GHz
Impedance: 50 Ohm
VSWR: ≤1.4:1 (DC 0~8GHz)
Insertion Loss: ≤0.8dB (DC 0~8GHz)
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >100 V
Probe Durability: ≥ 10000 cycles
Mating Cycles: SMPM ≥ 500 cycles
Operating Temperature: -45°C ~ +125°C
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

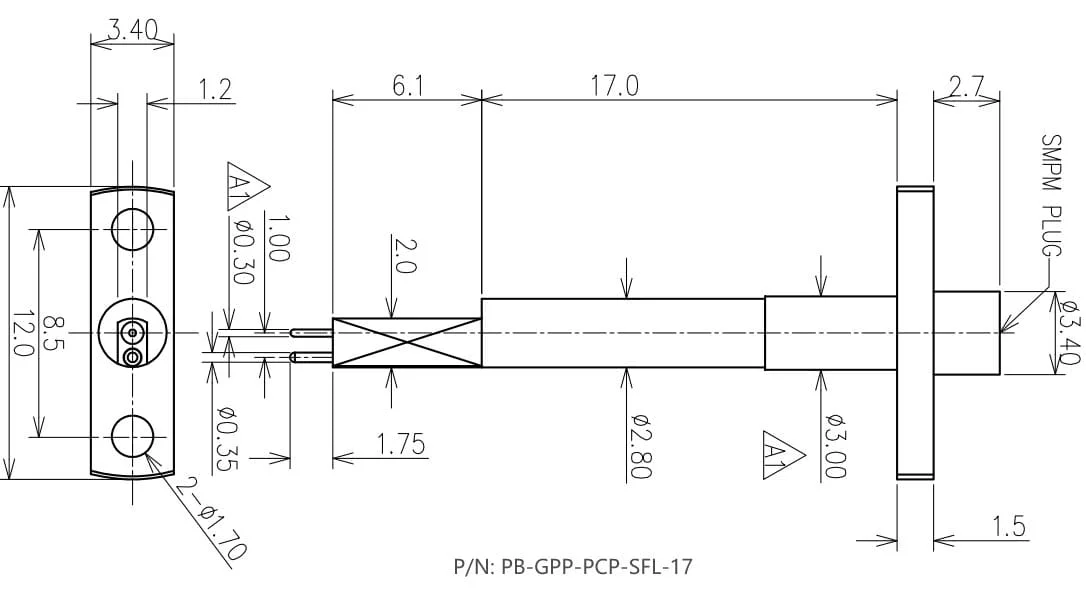

CAD data

PDF Download

SMPM to SG PCB RF Test Probes Product Introduction

Overview

Our SMPM to SG PCB RF Test Probes deliver uncompromising performance for high-frequency and high-reliability testing applications. Engineered with an SMPM Male to SG Pads interface, these probes maintain exceptional signal integrity from DC to 8 GHz, making them the ideal solution for cutting-edge electronic validation.

Features

No Minimum Order Barrier: We accept custom and standard orders with a 1-piece MOQ worldwide, perfectly supporting both R&D prototyping and large-scale production.
Superior RF Performance: 50Ω impedance with VSWR ≤1.40 ensures accurate signal transmission with minimal insertion loss up to 8 GHz.
Exceptional Durability: Robust construction withstands over 10,000 mating cycles, guaranteeing longevity in automated test environments.
Precision Engineering: Featuring a 1.0mm pitch, the SMPM to SG interface guarantees reliable and precise connections to PCB test points.
Rugged Environmental Reliability: Compliant with MIL-STD-202 standards, ensuring stable performance under extreme temperatures, vibration, and shock.

Applications

Our SMPM to SG PCB RF Test Probes are ideal for:

Automotive Radar Testing
5G & 6G Communication Modules
Satellite Communication Systems
Aerospace and Defense Electronics
High-Speed PCB Validation

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMPM to SG PCB RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	SMPM
	Adapter Gender 1	Male
	Adapter Angle 1	Straight
	Adapter Mount Method 1	2 Hole Flange
	Body Materials and Plating 1	Be-Cu, Gold Plated
	Adapter Series 2	SG PCB Pads
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Stainless Steel Passivated
Electric Specifications	Impedance	50ohm
	Frequency Range(From DC)	8GHz
	VSWR	≤1.41 (DC 0~8GHz)
	Insertion Loss	≤0.848(dc 0~8GHz)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMPMs 500 cycles
	Probe Durability	≥ 10000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft

Packaging & Shipping

📦 Precision ESD-Safe Packaging
Every RF component—from connectors and probes to cable assemblies—is secured with multi-layer, ESD-compliant packaging. We use static-shielding bags, custom-fit foam inserts, and reinforced boxes to prevent physical shock, moisture, and electrostatic discharge during transit, ensuring product integrity upon arrival.

✈️ Global Logistics & Express Shipping
We partner with leading global express carriers like DHL, FedEx, and UPS, alongside air and ocean freight specialists. We tailor shipping solutions from China to worldwide destinations, supporting everything from sample parcels to bulk orders under EXW, FOB, or CIF terms. Our service includes full documentation, customs brokerage, and real-time tracking for seamless door-to-door delivery.

🕒 Reliable & On-Time Delivery
Leveraging seasoned logistics coordination and reliable carrier relationships, we guarantee timely and accurate fulfillment. Whether you're ordering R&D samples or production volumes, we ensure swift processing and punctual shipping—so you can stay on schedule and focused on innovation.

Industry Applications

🔧 Core Technology Sectors
Our precision RF components serve mission-critical applications across 8 key sectors: 5G communications, automotive electronics, aerospace/defense, semiconductor testing, IoT, medical electronics, satellite communications, and industrial automation. Each domain relies on our solutions for uncompromised signal integrity.

🛠 Tailored Performance Solutions
We develop specialized configurations for unique industry requirements – from phase-stable cable assemblies for radar systems to micro-pitch probes for chipset validation. Our engineering team translates technical specifications into reliable performance under demanding operating conditions.

💡 Cross-Industry Innovation Synergy
By serving diverse sectors, we accumulate unique insights that drive innovation. Technologies developed for aerospace often benefit automotive applications, creating continuous improvement cycles that deliver superior value to all partners.

FAQ

1. Q: What is the minimum order quantity (MOQ) for this probe, and do you offer customization?
A: Yes, we offer full customization. The most important advantage we provide is that both standard and custom probes have an MOQ of just 1 piece. We accept and manage orders globally, making it ideal for R&D and low-volume production.

2. Q: What is the typical application for this SMPM to SG test probe?
A: It is ideally suited for high-frequency testing of PCBs in demanding industries such as automotive radar, 5G communication modules, satellite communications, and military electronics.

3. Q: How durable is this probe for production line use?
A: Extremely durable. It is rated for ≥10,000 mating cycles, ensuring long-term reliability and cost-effectiveness in high-volume production testing environments.

4. Q: Does the product meet military-grade environmental standards?
A: Yes. The probe is tested and complies with multiple MIL-STD-202 standards for vibration, shock, thermal shock, and salt spray corrosion, ensuring performance in harsh conditions.

5. Q: What does a VSWR of ≤1.40:1 mean for my measurements?
A: This low Voltage Standing Wave Ratio value ensures minimal signal reflection, which is critical for achieving accurate and reliable measurements in high-frequency (up to 8GHz) applications.

6. Q: Can the probe withstand rigorous environmental testing?
A: Absolutely. Its construction and materials are designed to operate reliably across a wide temperature range of -45°C to +125°C and pass stringent MIL-STD environmental tests.

7. Q: What is the mating cycle specification for the SMPM connector itself?
A: The SMPM interface is rated for ≥500 mating cycles, providing excellent connection reliability.

8. Q: Can I order a single sample for testing and validation?
A: Certainly. Our 1-piece MOQ policy is designed specifically for this purpose, allowing you to easily order a sample to verify performance and compatibility with your test setup.

9. Q: How does the probe contact the PCB?
A: The SG end is designed to contact surface-mounted (SMD) test pads on the PCB with a standard 1.0mm pitch, using a vertical (straight) approach.

10. Q: How do I request a quote for a custom probe design?
A: Simply contact us via the website form or email with your specific requirements (e.g., interface types, frequency, pitch, length). Our engineering team will promptly provide a quote, with custom orders starting from just 1 piece.
