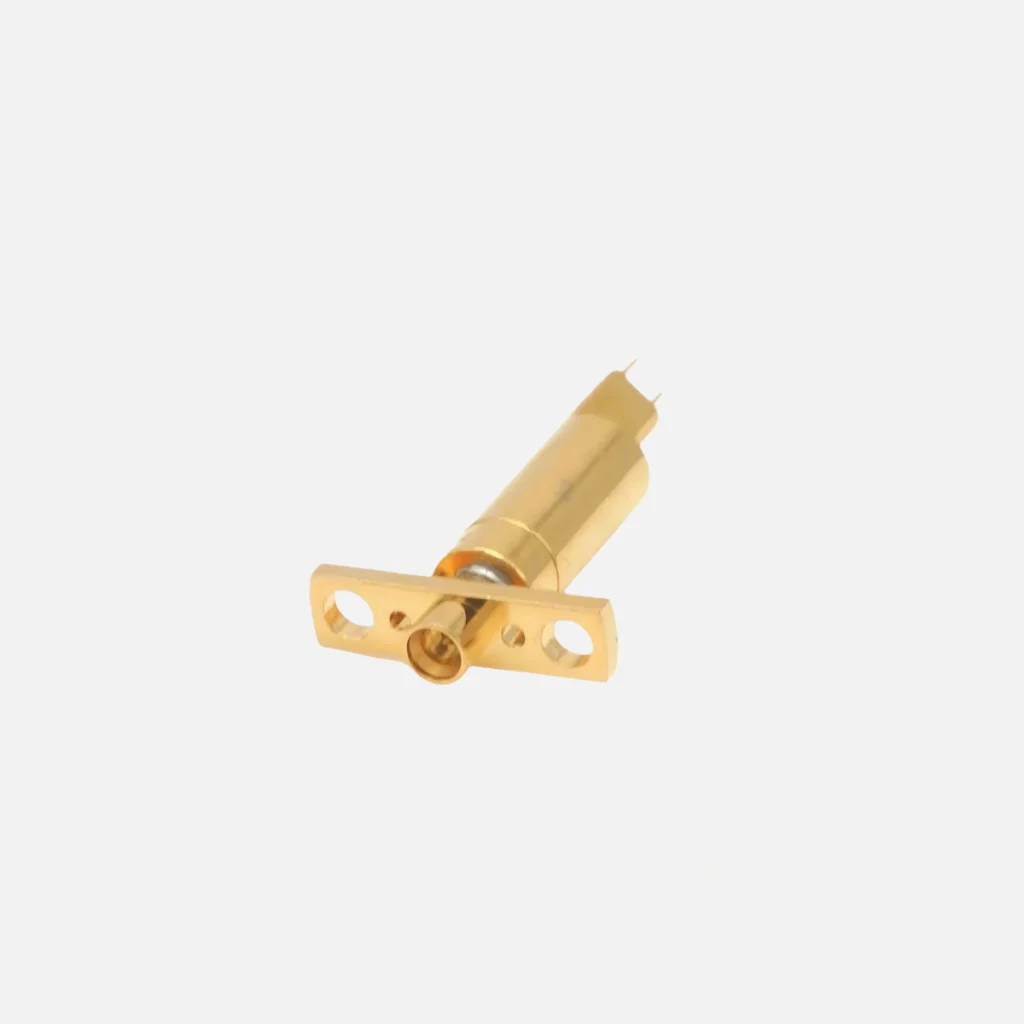

SMPM to SG Pogo Pin RF Test Probe

SMPM to SG Pogo Pin RF Test Probe：8GHz, 2.26mm Pitch

Adapter Series 1 & 2: SMPM to SG PCB Pads
Adapter Gender: Male
Body Materials and Plating: Brass with Gold Plated
Frequency Range (From DC): 8GHz
Impedance: 50 Ohm
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >100 V
Insulation Resistance: ≥500 Mohm
Probe Durability: ≥ 10000 cycles
Mating Cycles: SMPM ≥ 300 cycles
Operating Temperature: -45°C ~ +125°C
Mating Torque: 5~7 in – lbs
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

SMPM to SG Pogo Pin RF Test Probes Product Introduction

Overview

Our SMPM to SG Pogo Pin RF Test Probes deliver uncompromising performance for high-frequency and high-reliability testing applications. Engineered with an SMPM Male to SG Pads interface and spring-loaded pogo pin contacts, these probes maintain exceptional signal integrity from DC to 8 GHz, making them the ideal solution for cutting-edge electronic validation.

Features

No Minimum Order Barrier: We accept custom and standard orders with a 1-piece MOQ worldwide, perfectly supporting both R&D prototyping and large-scale production.
Superior RF Performance: 50Ω impedance ensures accurate signal transmission with minimal insertion loss up to 8 GHz frequency range.
Exceptional Durability: Robust construction withstands over 10,000 mating cycles, guaranteeing longevity in automated test environments.
Precision Engineering: Featuring a 2.26mm pitch and gold-plated brass contacts, the SMPM to SG pogo pin interface guarantees reliable and precise connections to PCB test points.
Rugged Environmental Reliability: Compliant with MIL-STD-202 standards, ensuring stable performance under extreme temperatures, vibration, and shock.

Applications

Our SMPM to SG Pogo Pin RF Test Probes are ideal for:

Automotive Radar Testing
5G & 6G Communication Modules
Satellite Communication Systems
Aerospace and Defense Electronics
High-Speed PCB Validation

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMPM to SG Pogo Pin RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	SMPM
	Adapter Gender 1	Male
	Adapter Angle 1	Straight
	Adapter Mount Method 1	2 Hole Flange
	Body Materials and Plating 1	Brass with Gold Plated
	Adapter Series 2	SG PCB Pads
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Brass with Gold Plated
Electric Specifications	Impedance	50 Ohm
	Frequency Range(From DC)	8GHz
	VSWR	TBD
	Insertion Loss	TBD
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMPM≥300 cycles
	Probe Durability	≥10000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107, Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft
