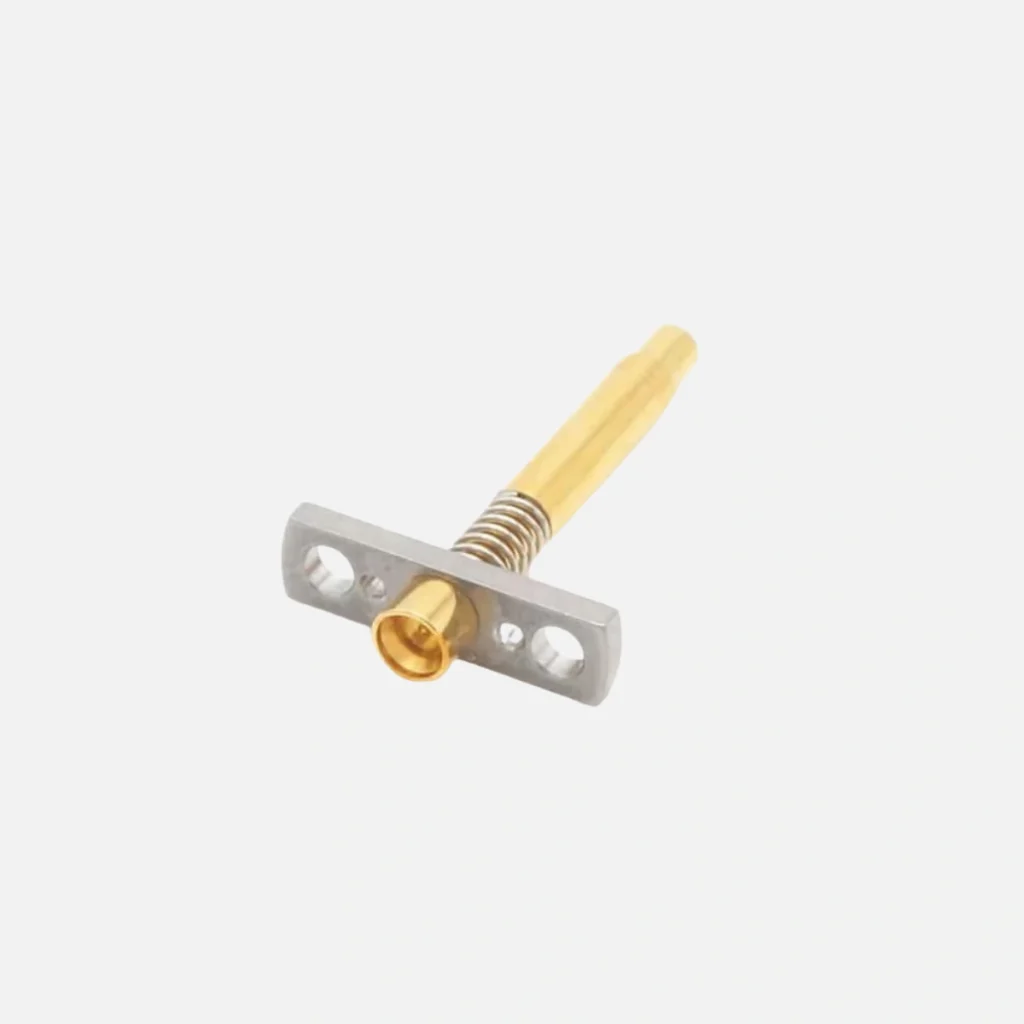

SMPM to SWG RF Test Probe

SMPM to SWG RF Test Probe：High-Frequency Microwave & Communication Testing Solution

Adapter Series 1 & 2: SMPM to SWG
Adapter Gender: Male
Body Materials and Plating: Copper Alloy & Be-Cu Gold Plated
Frequency Range (From DC): 11GHz
VSWR: ≤1.3:1 (DC 0~11GHz)
Impedance: 50 Ohm
Insertion Loss: ≤0.8dB (DC 0~11GHz)
Probe Durability: ≥ 20000 cycles
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >500 V
Mating Cycles: SMPM ≥ 200 cycles
Operating Temperature: -45°C ~ +125°C
Mating Torque: 5~7 in – lbs
Compliance & Standards: RoHS Compliant, MIL-STD-202
MOQ & Customization: 1 Piece

CAD data

PDF Download

1. Superior RF Performance

Supports an ultra-wide frequency range of up to 11GHz, ideal for millimeter-wave testing applications.
Features SMPM male and SWG interfaces for stable and reliable connections.
Low insertion loss design ensures accurate signal transmission and measurement precision.

2. Robust and Durable Construction

Crafted from gold-plated brass for excellent conductivity and corrosion resistance.
Precision mechanical structure guarantees a mating cycle life of ≥500 cycles.
Optimized interface design prevents misalignment and damage during operation.

3. Flexible Procurement Options

Minimum Order Quantity (MOQ) of just 1 piece, ideal for R&D and prototyping.
Customized solutions available for interface types, cable lengths, and performance specs.
Fast delivery for standard products to accelerate project timelines.

4. Exceptional Environmental Adaptability

Operates reliably in extreme temperatures from -45°C to +85°C.
Fully compliant with RoHS environmental standards.
Designed to withstand vibration and shock in demanding testing environments.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMPM to SWG RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	SMPM
	Adapter Gender 1	Male
	Adapter Angle 1	Straight
	Adapter Mount Method 1	2 Hole Flange
	Body Materials and Plating 1	Copper Alloy Gold Plated
	Adapter Series 2	SWG
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Be-Cu, Gold Plated
Electric Specifications	Impedance	50ohm
	Frequency Range (From DC)	11GHz
	VSWR	≤1.3:1 (DC 0~11GHz)
	Insertion Loss	≤0.8dB (DC 0~11GHz)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>500 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMPM ≥ 200 cycles
	Probe Durability	≥ 20000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft
