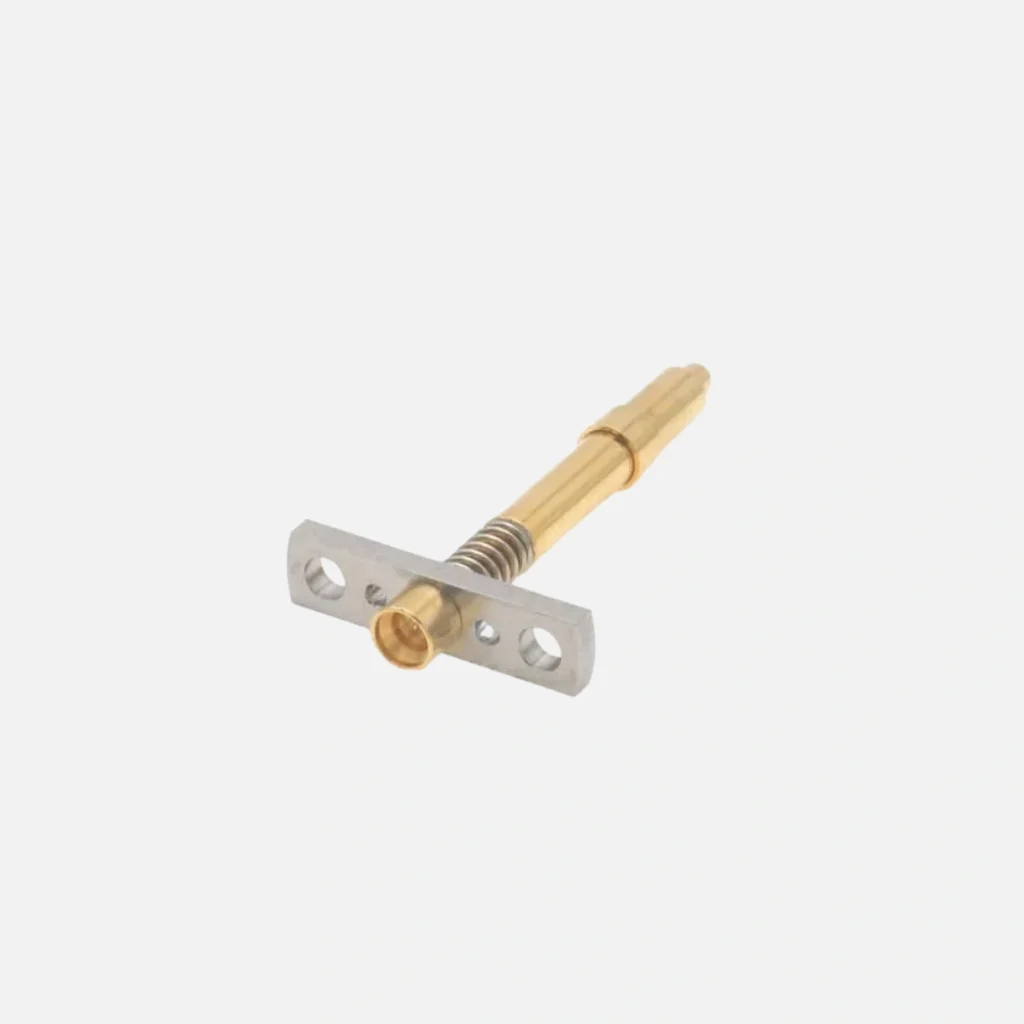

SMPM to SWJ RF Test Probe

SMPM to SWJ RF Test Probe for Demanding High-Frequency Applications

Interface Configuration: SMPM Male to SWJ Male
Frequency Range: DC to 11GHz
Impedance: 50Ω
VSWR: ≤1.3:1 (DC 0~11GHz)
Insertion Loss: ≤0.8dB (DC 0~11GHz)
Voltage Rating: 335 V(rms)
Dielectric Withstanding Voltage: >100 V
Insulation Resistance: ≥500 MΩ
Mating Cycles: ≥500 cycles (SMPM)
Probe Durability: ≥20,000 cycles
Mating Torque: 5-7 in-lbs
Operating Temperature: -45°C to +125°C
Contact Material: Be-Cu Gold Plated / Stainless Steel Passivated
Minimum Order Quantity: 1 Piece (Custom orders start from 1 piece)

CAD data

PDF Download

SMPM to SWJ RF Test Probe: Precision Interfaces for Critical Applications

Our SMPM to SWJ RF Test Probe represent the pinnacle of high-frequency testing technology, designed to meet the most demanding requirements in military, aerospace, and telecommunications applications. These probes feature a precision SMPM Male connector on the instrument end and a reliable SWJ interface on the device under test side, ensuring perfect compatibility with high-density RF systems. Engineered to operate from DC to 11GHz while maintaining consistent 50-ohm impedance, these SMPM to SWJ RF Test Probe deliver exceptional signal integrity and phase stability, making them essential for both development validation and mission-critical production testing.

Mission-Critical Applications Across Advanced Industries

The robust design of our SMPM to SWJ RF Test Probe makes them indispensable in environments where reliability is non-negotiable. They are particularly crucial for:

Military communications systems testing and validation
Aerospace and avionics RF system verification
5G infrastructure equipment manufacturing and testing
Satellite communications equipment validation
High-reliability medical imaging system testing

These SMPM to SWJ RF Test Probes ensure accurate measurements in the most challenging environments, maintaining performance under extreme conditions while providing consistent, repeatable results for critical applications.

Unmatched Flexibility for High-Reliability Applications

We redefine accessibility in high-reliability RF testing by eliminating traditional procurement barriers. While delivering exceptional high-frequency performance with superior VSWR characteristics, our most significant advantage remains our minimum order quantity of just 1 unit. This industry-transforming policy extends to all custom requirements – custom SMPM to SWJ RF Test Probes also start at just 1 piece, with global order acceptance. Whether you need standard SMPM to SWJ RF Test Probes or specialized solutions with unique interface configurations, enhanced performance specifications, or specialized mechanical requirements, we provide:

No minimum quantity barriers for prototyping or production
Rapid customization with military-grade engineering support
Global logistics capability ensuring delivery to any location
Cost-effective solutions without compromising reliability

This approach enables faster development cycles and more flexible manufacturing processes for high-reliability RF systems across defense, aerospace, and telecommunications sectors.

Production Process

Product Detail Sheet

Category	Parameter	Description
Product Information	Product Name	SMPM to SWJ RF Test Probe
	Brand	REECUFUTURE
	Minimum Order Quantity	1 Piece
	Packaging	Boxed
	Origin	Shanghai, China
Configuration	Adapter Series 1	SMPM
	Adapter Gender 1	Male
	Adapter Angle 1	Straight
	Adapter Mount Method 1	2 Hole Flange
	Body Materials and Plating 1	Be-Cu, Gold Plated
	Adapter Series 2	SWJ
	Adapter Gender 2	Male
	Adapter Angle 2	Straight
	Adapter Mount Method 2	None
	Body Materials and Plating 2	Stainless Steel Passivated
Electric Specifications	Impedance	50ohm
	Frequency Range (from DC)	11GHz
	VSWR	≤1.3:1 (DC 0~11GHz)
	Insertion Loss	≤0.8dB (DC 0~11GHz)
	Voltage Rating	335 V(rms)
	Dielectric Withstanding Voltage	>100 V
	Insulation Resistance	≥500 Mohm
Mechanical Characteristics	Mating Cycles	SMPM ≥ 500 cycles
	Probe Durability	≥ 20000 cycles
	Mating Torque	5~7 in – lbs
Environmental Characteristics (RoHS Compliant)	Temperature Rating	-45°C ~ +125°C
	Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
	Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
	Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
	Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
	Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
